HW
Downflow Unit Heater
TPI

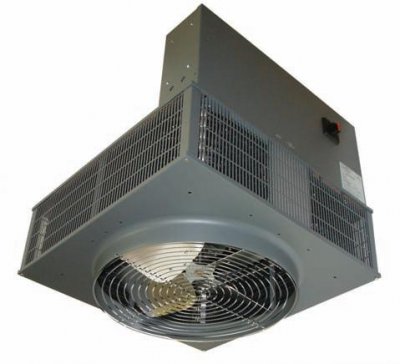

Downflow Unit Heater

F3F2607CA1
Price $2,400.00 $1,536.00
SKU: F3F2607CA1
BTU /hr.: 25598 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 7.5 KW Downflow Unit Heater F3F2607CA1 Resources:

TPI 7.5 KW Downflow Unit Heater F3F2607CA1 Specification

Downflow Unit Heaters - 7.5 KW Downflow Unit Heater - TPI F3F2607CA1 - 25598 BTU

Presenting 7.5 KW Downflow Unit Heater with 25598 BTU by TPI. Model F3F2607CA1 comprises of in-built 24 volt transformer for low voltage remote thermostat application, axial flow fan blade, in-built disconnect, 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door. This efficient unit is made of highest quality materials and components.

TPI 7.5 KW Downflow Unit Heater F3F2607CA1 Specifications
UPC686334715850
KW7.5
BTU25598
VOLTS208
PHASE3
AMPS20.8
Control Voltage24
Temperature Rise45 F
CFM560
Weight75 Lbs.

TPI 7.5 KW Downflow Unit Heater F3F2607CA1 Features:

CONSTRUCTION:

  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard

HEATING ELEMENT:

  • Corrosion resistant element with steel sheath and steel spiral fins

OVERHEAT PROTECTION:

  • Equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, 1 speed, 1 phase permanently lubricated and thermally protected motors.
  • Axial flow fan blade - 1570 RPM max.
  • Equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat

TEMPERATURE CONTROLS:

  • Has in-built 24 volt transformer for low voltage remote thermostat application

DISCONNECT SWITCH:

  • Equipped with in-built disconnect

INSTALLATION:

  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain
