Fan Forced Suspended Unit Heater
TPI

Fan Forced Suspended Unit Heater

F1F5103N
Price $1,157.00 $740.48
Please select from the Options below
Control Option
SKU: F1F5103N
BTU /hr.: 11200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 3.3KW Single Pole Fan Forced Suspended Unit Heater F1F5103N Resources:

TPI 3.3KW Single Pole Fan Forced Suspended Unit Heater F1F5103N Specifications

Presenting 3.3KW Single Pole Fan Forced Suspended Unit Heater manufactured by TPI. Model no F1F5103N is manufactured using 18 gauge steel cabinet and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance. Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow.

TPI 3.3KW Single Pole Fan Forced Suspended Unit Heater F1F5103N Specifications
Power3.3 KW
BTU's11.2
Volts208
Phase1
Amps15.9
Control Volts208
Temp Rise26 F
CFM400
Air Throw12'
Recommended Mounting Ht.(Horizontal)9'
Recommended Mounting Ht.(Vertical)9'
Weight25 Lbs.
UPC686334645089

TPI 3.3KW Single Pole Fan Forced Suspended Unit Heater F1F5103N Features:

    CONSTRUCTION:
  • Heavy 18 ga. welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance
  • HEATING ELEMENT:
  • Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow.
  • OVERHEAT PROTECTION:
  • Comes equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motor with unit bearing. Motor is mounted with rubber insulators to minimize vibration & noise. Fan over-ride purges unit of residual heat at shutdown
  • LOUVER ASSEMBLY:
  • Louver is individually adjustable for directional control of air flow up to 15 deg from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications
  • TEMPERATURE CONTROLS:
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40 deg-90 degF
  • INSTALLATION:
  • It can be mounted for horizontal or vertical discharge
  • For applications up to 6000 feet.
  • ABS type approved
  • FIELD INSTALLED OPTIONS:
  • In-unit or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
Accessories
Anemostat Diffuser
TPI
Price $651.00 $416.64
Wall / Ceiling Mounting Bracket
TPI
Price $177.00 $113.28
Wall / Ceiling Mounting Bracket
TPI
Price $92.00 $58.88
Vertical Mount Bracket
TPI
Price $341.00 $218.24
Thermostat
TPI
Price $309.00 $197.76
Wall Thermostat
TPI
Price $678.00 $433.92
Thermostat
TPI
Price $210.00 $134.40
Line Volt Summer Fan Switch
TPI
Price $121.00 $77.44
Stratification Thermostat
TPI
Price $226.00 $144.64
Related ITems
Mounting Bracket Kit
TPI
SKU: HLPM1525
Fuel Type: Electric
Horizontal Fan Forced Heater
TPI
SKU: F1FUH03003
BTU /HR.: 11200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Beige
Horizontal Fan Forced Heater
TPI
SKU: F1FUH25CA1
BTU /HR.: 85300 BTU
Fuel Type: Electric
Volts: 208 V
Color: Beige
Fan Forced Suspended Unit Heater
TPI
SKU: F1F5105N
BTU /HR.: 17100 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray

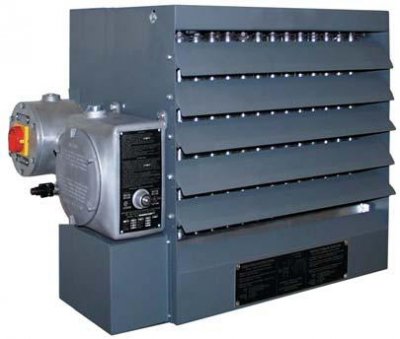

Hazardous Location Fan Forced Unit Heater
