HW
Washdown Unit Heater
TPI

Washdown Unit Heater

F3F5520T
Price $12,115.00 $7,753.60
Please select from the Options below
Disconnect Switch
SKU: F3F5520T
BTU /hr.: 68260 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI 20 KW Fan Forced Washdown Unit Heater F3F5520T Resources:

TPI 20 KW Fan Forced Washdown Unit Heater F3F5520T Specification

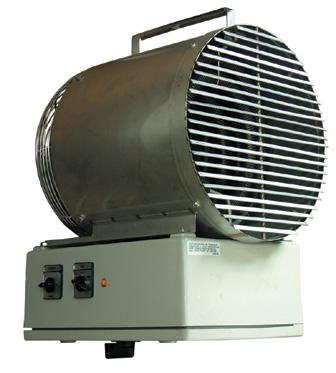

Electric Forced Air Heaters - 20 KW Fan Forced Washdown Unit Heater - TPI F3F5520T - 68260 BTU

Presenting 20 KW Fan Forced Washdown Unit Heater with 68260 BTU manufactured by TPI. Model F3F5520T is one of the most sought-after heaters by TPI. This user-friendly and safe features automatic reset thermal cutout, single point power connection, 24 volt control, pilot light and disconnect switch with enclosure door interlock. The totally enclosed water-tight construction made with corrosion-resistant material makes this unit ideal for industrial heating applications.

TPI 20 KW Fan Forced Washdown Unit Heater F3F5520T Specifications
UPC686334713467
KW20
BTU68260
VOLTS208
PHASE3
AMPS55.6
Control Voltage24
Temperature Rise45 F
Air Throw35'
CFM1400
Weight92 Lbs.

TPI 20 KW Fan Forced Washdown Unit Heater F3F5520T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout. Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless steel finned tubular element; monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available.
  • Minimum mounting height is 7 inches.
  • ABS Type approved
