HW
Fan Forced Unit Heater
TPI

Fan Forced Unit Heater

F2FUH05C03
Price $503.80
Please select from the Options below
Factory Installed Controls
SKU: F2FUH05C03
BTU /hr.: 17100 BTU
Fuel Type: Electric
Volts: 208 V
Color: Beige
Brand: TPI
Resources

Horizontal Discharge Fan Forced Suspended Unit Heater TPI F2FUH05C03 Resources:

Horizontal Discharge Fan Forced Suspended Unit Heater TPI F2FUH05C03 Specification

Electric Forced Air Heaters - 5KW Horizontal Discharge Fan Forced Suspended Unit Heater - TPI F2FUH05C03 - 17100 BTU

Enjoy the comfort and warmth of safe, clean-burning heat with TPI model F2FUH05C03. This 5KW Horizontal Discharge Fan Forced Suspended Unit Heater is constructed using supreme quality 18 ga. steel cabinet with powder coated finish. This unit is equipped with automatic reset type limit. It has adjustable louvers for directional control of air flow.

Horizontal Discharge Fan Forced Suspended Unit Heater TPI F2FUH05C03 Specifications
UPC686334644938
Power5 KW
BTU / Hr17100
VOLTAGE208 V
PHASE1 / 3
AMPS24.1/14.0
Control Voltage208
Temperature Rise40 F
Air Throw26'
CFM400
Recommended Mounting Height9'
Dimensions17-3/4"H x 14-4/9"W x 6-1/2"D
Weight44 Lbs.

Horizontal Discharge Fan Forced Suspended Unit Heater TPI F2FUH05C03 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade

OVERHEAT PROTECTION:

  • All units come equipped with automatic reset type limit controls to de-energize the

FAN and MOTOR:

  • heater should an over-temperature situation occur.Totally enclosed, single phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 10 KW models and sleeve bearings on 12.5 KW - 48 KW models - mounted with rubber insulators to minimize vibration and noise
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TEMPERATURE CONTROLS:

  • 20 KW through 48 KW units and all 480V have built in 24 volt transformer for low voltage remote thermostat application
  • 25 KW through 48 KW models available in 2-stage on special order

INSTALLATION:

  • UH Series may be mounted at a maximum of 45 degrees off of horizontal
  • On all models up to 15 KW, 1/4" threaded rod may be used for mounting; on all models 20 KW and above 5/16" threaded rod may be used
  • Optional wall / ceiling mounting brackets available for all units
  • Suitable for applications up to 13,000 feet

FACTORY INSTALLED OPTIONS:

  • 24 volt transformer on 3 KW to 15KW units to convert from line voltage to low voltage remote thermostat operation (non CA1 models only)
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available - consult factory
  • Disconnect switch
Accessories
Thermostat Kit
TPI
Price $52.25
Related ITems

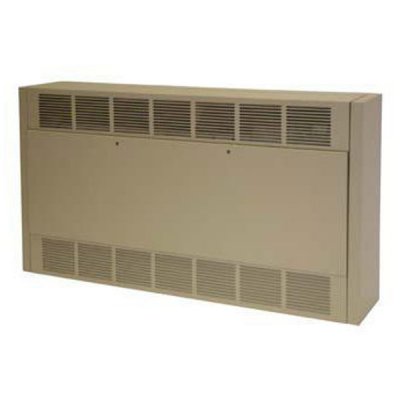

Fan Forced Cabinet Unit Heater
