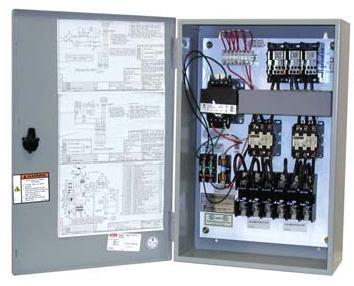

Electric Infrared Heating Controls - 240 V, 100 Amps, NEMA 1, 24V Circuit Contactor Panel - TPI FPC2220
Get the safe and instant with TPI heaters. Model FPC2220, 240 V, 100 Amps Contactor Panel is UL listed Infrared Heaters Accessories & Parts. It comes with optional disconnect switch available for all panel circuit types, amps & voltage sizes. This 3-phase load rated unit is available with NEMA 1 enclosures included. Try NOW!!
| Contactor Panel - TPI FPC2220 Specifications |
|---|
| Amps | 100 |
|---|
| Voltage | 240 V |
|---|
| Dimension | 6.75" D x 16" W x 24" H |
|---|
| Nema Config | Nema 1 |
|---|
| Control System | 24 V |
|---|
| Weight | 70 Lbs. |
|---|
| UPC | 686334486484 |
|---|
240 V, 100 Amps Contactor Panel - TPI FPC2220 Features:
- Factory pre-wired for quick installation and for use with the following control equipment: Single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C)
- NEMA 1 enclosures included
- Contact factory for 3R, 4, 4X, & NEMA 12 enclosure types
- Max 50-Amp branch circuit fusing
- Step-down transformer and secondary fusing for 24 or 120 volt control circuit
- Optional Disconnect Switch available for all panel circuit types, amps & voltage sizes
- 3-Phase load rated
- Fuses are NOT included
- UL Listed
