HW
100 Amp Contactor Panel
TPI

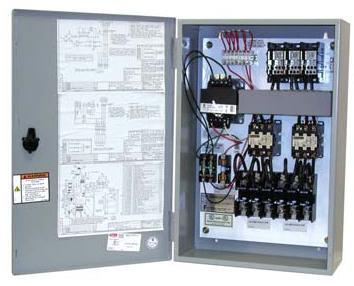

100 Amp Contactor Panel

FPC7120
Price $1,788.05
SKU: FPC7120
Fuel Type: Electric
Volts: 277 - 480 V
Brand: TPI
Resources

TPI Contactor Panel FPC7120 Resources:

TPI Contactor Panel FPC7120 Specification

Electric Infrared Heating Controls - 277 V / 480 V, 100 Amps, NEMA 1, 120V Circuit Contactor Panel - TPI FPC7120

We applaud the inclusion of model FPC7120, 277 V / 480 V, 100 Amps Contactor Panel by TPI. This unit is to be use with single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C) control equipment. This infrared heater accessory is pre wired at factory for quick installation. NEMA 1 q included!

Contactor Panel - TPI FPC7120 Specifications
Amps100
Voltage277 V / 480 V
Dimension6.75" D x 16" W x 24" H
Nema ConfigNema 1
Control System120 V
Weight70 Lbs.
UPC686334446051

277 V / 480 V, 100 Amps Contactor Panel - TPI FPC7120 Features:

  • Factory pre-wired for quick installation and for use with the following control equipment: Single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C)
  • NEMA 1 enclosures included
  • Contact factory for 3R, 4, 4X, & NEMA 12 enclosure types
  • Max 50-Amp branch circuit fusing
  • Step-down transformer and secondary fusing for 24 or 120 volt control circuit
  • Optional Disconnect Switch available for all panel circuit types, amps & voltage sizes
  • 3-Phase load rated
  • Fuses are NOT included
  • UL Listed
