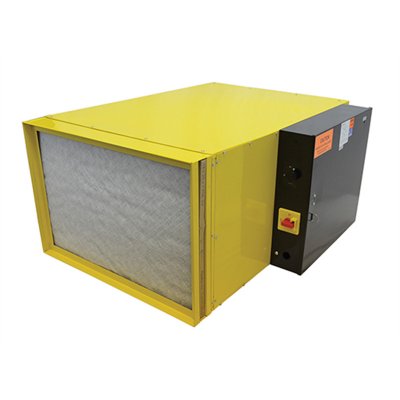

14.1 KW, 240V, Three Phase Hot Room Heater
TPI

14.1 KW, 240V, Three Phase Hot Room Heater

HR-H3-14.1
Price $15,802.00 $10,113.28
SKU: HR-H3-14.1
Fuel Type: Electric
Volts: 240
Brand: TPI

14.1 KW, 240V, Three Phase Hot Room Heater

    Features :

  • High-temperature rated, ball bearing motor; forward curved centrifugal blower; standard with airflow switch, temperature limit controls (manual and automatic resets), and lockable disconnect switch with fuse block
  • Galvannealed 20 Gauge heavy-duty metal housing
  • Totally enclosed, finned tubular stainless steel heating elements, provide the benefits of closer temperature regulation, less chance of shock hazards, less susceptibility for shorting, easy service, and will better withstand physical abuse
  • Capability of mounting for in-room use, or mounting at an external wall/ceiling, with the heat inlet/outlet ducted to/from the room. 1" duct flanges at inlet and discharge ends are standard, to provide for ducting on the unit
  • All models listed are designed for permanent mounting and hard wiring
  • A typical hot room should be totally enclosed, with provisions made to keep air from escaping, other than the air being ducted thru the heater itself when the unit is mounted outside the room. As always, insulation should be considered for walls and ceiling, to maximize energy efficiency and heater performace
  • Made in U.S.A.
Model Number HR-H3-14.1
Voltage Phase 240/3
KW 14.1
Amp 36
Height 18
Width 26
Length 36
Motor Rating HP 3/4
LCFM 2200
Temperature Rise 22.1
