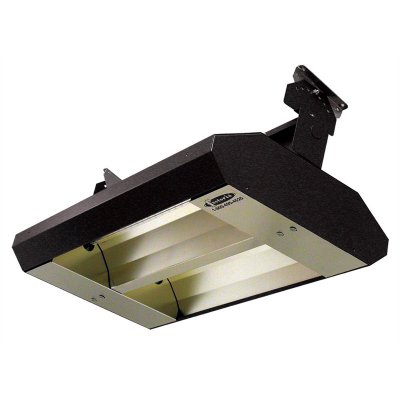

2 Lamp 8MM 3.2KW 208V 30Asym Mul-T-Mount Electric Infrared Heater Bronze Finish With Amber Gray Sleeves
Fostoria

2 Lamp 8MM 3.2KW 208V 30Asym Mul-T-Mount Electric Infrared Heater Bronze Finish With Amber Gray Sleeves

222A30TH208VAG
Price $1,138.00 $728.32
SKU: 222A30TH208VAG
BTU /hr.: 10922
Fuel Type: Electric
Volts: 208
Color: Bronze
Brand: Fostoria

2 Lamp 8MM 3.2KW 208V 30Asym Mul-T-Mount Electric Infrared Heater Bronze Finish With Amber Gray Sleeves

  • TH Series: 222, 342, 462 (Painted Version) 2-lamp
  • THSS Series 222, 342, 462 (Stainless Steel Version) 2-lamp
  • THSS Series 223, 343, 463 (Stainless Steel Version) 3-lamp
  • Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications.
  • Reflectors and End Caps: .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity. Five choices of reflector patterns including 30 degree narrow (symmetric & asymmetric), 60 degree medium (symmetric & asymmetric), and 90 degree wide (symmetric). THSS models have stainless steel endcaps.
  • Elements: Clear quartz lamps. Coiled tungsten filament located within a sealed quartz envelope, halogen filled, with porcelain end caps and 6" wire pigtail leads. Elements are 12mm in diameter and deliver a 96% radiant efficiency with high moisture and thermal shock resistance. Instantaneous heat-up and cool-down performance. Available wattages from 1600 to 3650 Watts per element. Available voltages from 208 to 600 Volts.
  • Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls. Please follow installation instructions that accompany each heater.
  • Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).

    Features :

  • Available in 2 lamp bankers bronze finish
  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
  • Listed for recessed applications
  • 20 gauge powder coated steel or stainless steel housings
  • Gold anodized Aluminum reflectors & end caps
  • 50% higher wattage densities for 3-element units
  • 2-Lamp wiring, single phase
  • 3-Lamp wiring, three or single phase
  • Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
  • High temperature lead wires
  • Clear 12mm diameter Quartz Lamp(s) Included
  • Elements provide a bright light, generating 8-lumens per watt
  • Made in U.S.A.
Model Number 222-A30-TH-208V-AG
Agency Rating ETL-CUS
KW 3.2
BTU 10922
Voltage 208
Phase 1
Reflective Pattern 30 Deg ASymmetrical
Lamp Included Yes
Lamp Type Quartz
Lamp Number 2
Lamp PN 4912802
Height 11
Length 24
Mounting Height Indoor 14' - 30'
Weight (lbs) 20
