HW

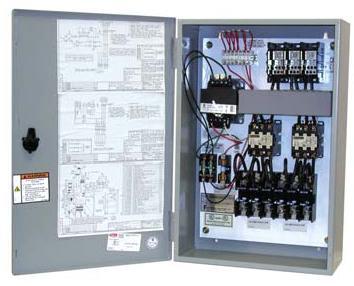

200 Amp Contactor Panel
TPI

200 Amp Contactor Panel

FPC8240
Price $6,376.00 $4,080.64
SKU: FPC8240
Fuel Type: Electric
Volts: 208 V
Brand: TPI
Resources

TPI Contactor Panel FPC8240 Resources:

TPI Contactor Panel FPC8240 Specification

Electric Infrared Heating Controls - 208 V, 200 Amps, NEMA 1, 24V Circuit Contactor Panel - TPI FPC8240

Get attractive price on model FPC8240, 208 V, 200 Amps Contactor Panel for use with single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C) control equipment. This infrared heater accessory by TPI is easy to install, pre wired at factory. NEMA 1 enclosures included!

Contactor Panel - TPI FPC8240 Specifications
Amps200
Voltage208 V
Dimension6.75" D x 24" W x 30" H
Nema ConfigNema 1
Control System24 V
Weight88 Lbs.
UPC686334486514

208 V, 200 Amps Contactor Panel - TPI FPC8240 Features:

  • Factory pre-wired for quick installation and for use with the following control equipment: Single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C)
  • NEMA 1 enclosures included
  • Contact factory for 3R, 4, 4X, & NEMA 12 enclosure types
  • Max 50-Amp branch circuit fusing
  • Step-down transformer and secondary fusing for 24 or 120 volt control circuit
  • Optional Disconnect Switch available for all panel circuit types, amps & voltage sizes
  • 3-Phase load rated
  • Fuses are NOT included
  • UL Listed
