200 Amp Contactor Panel
TPI

200 Amp Contactor Panel

FPC2140
Price $2,530.00
SKU: FPC2140
Fuel Type: Electric
Volts: 240 V
Brand: TPI
Resources

TPI Contactor Panel FPC2140 Resources:

TPI Contactor Panel FPC2140 Specification

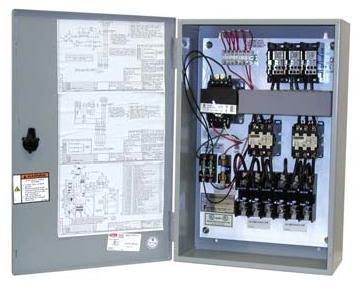

Electric Infrared Heating Controls - 240 V, 200 Amps, NEMA 1, 120V Circuit Contactor Panel - TPI FPC2140

Leading manufacturer TPI presents Infrared Heaters Accessories & Parts. This 240 V, 200 Amps Contactor Panel model FPC2140 is to be use with single & two-stage thermostats, snow & ice detector (APS-3C). This UL listed panel is pre wired at factory for quick installation and easy to use.

Contactor Panel - TPI FPC2140 Specifications
Amps200
Voltage240 V
Dimension6.75" D x 24" W x 30" H
Nema ConfigNema 1
Control System120 V
Weight88 Lbs.
UPC686334446082

240 V, 200 Amps Contactor Panel - TPI FPC2140 Features:

  • Factory pre-wired for quick installation and for use with the following control equipment: Single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C)
  • NEMA 1 enclosures included
  • Contact factory for 3R, 4, 4X, & NEMA 12 enclosure types
  • Max 50-Amp branch circuit fusing
  • Step-down transformer and secondary fusing for 24 or 120 volt control circuit
  • Optional Disconnect Switch available for all panel circuit types, amps & voltage sizes
  • 3-Phase load rated
  • Fuses are NOT included
  • UL Listed
