200 Amp Contactor Panel
TPI

200 Amp Contactor Panel

FPC4140
Price $2,530.00
SKU: FPC4140
Fuel Type: Electric
Volts: 480 V
Brand: TPI
Resources

TPI Contactor Panel FPC4140 Resources:

TPI Contactor Panel FPC4140 Specification

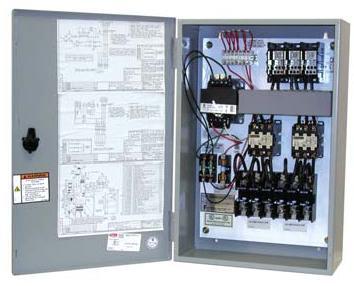

Electric Infrared Heating Controls - 480 V, 200 Amps, NEMA 1, 120V Circuit Contactor Panel - TPI FPC4140

Highly efficient and cost effective infrared heater accessory by TPI is now available in our online store. This 480 V, 200 Amps Contactor Panel is pre wired at factory for quick installation. Model FPC4140 is a UL listed quality unit, that is easy and safe to use. This unit comes with step down transformer. Buy this multi featured unit NOW!

Contactor Panel - TPI FPC4140 Specifications
Amps200
Voltage480 V
Dimension6.75" D x 24" W x 30" H
Nema ConfigNema 1
Control System120 V
Weight88 Lbs.
UPC686334446105

480 V, 200 Amps Contactor Panel - TPI FPC4140 Features:

  • Factory pre-wired for quick installation and for use with the following control equipment: Single & two-stage thermostats (requires 2-contactors), snow & ice detector (APS-3C)
  • NEMA 1 enclosures included
  • Contact factory for 3R, 4, 4X, & NEMA 12 enclosure types
  • Max 50-Amp branch circuit fusing
  • Step-down transformer and secondary fusing for 24 or 120 volt control circuit
  • Optional Disconnect Switch available for all panel circuit types, amps & voltage sizes
  • 3-Phase load rated
  • Fuses are NOT included
  • UL Listed
