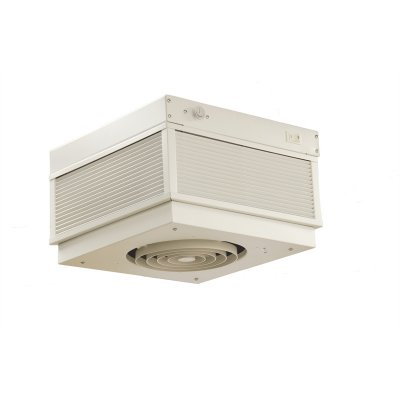

2KW 277V Commercial Surface Mounted Ceiling Heater
TPI

2KW 277V Commercial Surface Mounted Ceiling Heater

G3472A1
Price $2,208.00 $1,413.12
Please select from the Options below
Field Installed Accessories
SKU: G3472A1
BTU /hr.: 6826
Fuel Type: Electric
Volts: 277
Color: White
Brand: TPI

2KW 277V Commercial Surface Mounted Ceiling Heater

  • CONSTRUCTION: Made in U.S.A. Contractor shall supply and install heavy duty ceiling mounted forced air electric heater(s) of the wattage, voltage and phase as indicated on the plans. The heater shall so be designed to provide an even distribution of heated air to the space to be heated by drawing return air in the periphery of the heater, across and through the element and be discharged from the center section of the heater by mean of an electric motor and axial flow fan blade.
  • MOTOR: Motor shall be permanently lubricated, unit bearing, totally enclosed shaded pole type with impedance protection. Motors shall operate at no more than 1300 RPM and shall be same voltage as the heater.
  • PERFORMANCE: Heaters shall have a rating of 600 CFM at 1,000 F.P.M. with a maximum temperature rise of 44°F and 63.9 dB rating.
  • ELEMENT: Element assemblies shall consist of two or three corrosion resistant steel sheathed type elements mechanically bonded to common corrosion resistant steel fins. Each sheathed element shall consist of helically coiled Nickel Chromium alloy resistant wire completely embedded in and surrounded by Magnesium Oxide, enclosed and wedged into corrosion resistant steel sheaths. Elements shall have 2" cold conductor pins extending into sheath and shall have a density of no more than 60 watts per inch.
  • THERMAL OVERLOAD: Heaters shall be equipped with a “manual reset" thermal overload which disconnects elements and motor in the event normal operating temperatures are exceeded. For safety, if opened due to abnormal temperature, thermal overload shall remain open until manually reset. Automatic reset thermal overloads which allow the element to continue to cycle under abnormal conditions will not be accepted.
  • Commercial and Institutional Applications: Use in - vestibules, entrance ways, lobbies, rest rooms and small office and guard building applications.
  • Maximum mounting is 12' AFF

    Features :

  • White powder coated 20 gauge grill
  • All units have manual reset thermal limit, 24V control transformer, and 24V relay (A1 suffix)
  • Enclosed steel fin sheath element
  • Rough in dimensions: 23 1/16" sq. x 9 1/8" deep
  • Maximum mounting is 12'
  • Made in U.S.A.
Model Number G3472A1
Amp 7.2
BTU 6826
CFM 600
KW 2
Agency Rating ETL-CUS
Phase 1
Temperature Rise 15
Voltage 277
Weight (lbs) 42
Color White
