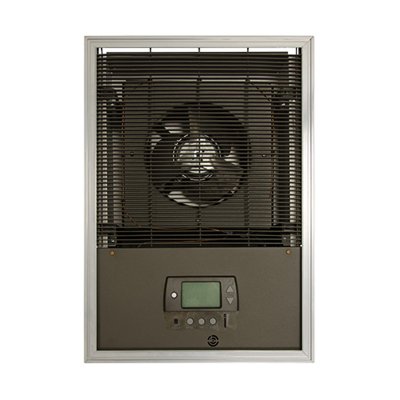

3000W 208V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can
TPI

3000W 208V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can

F3453SD
Price $3,521.00 $2,253.44
SKU: F3453SD
BTU /hr.: 10239
Fuel Type: Electric
Volts: 208
Brand: TPI

3000W 208V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can

    Features :

  • Heavy duty architectural style
  • Automatic fan purge circuit
  • Manual reset thermal limit switch
  • Powder coated bar stock grill with extruded Aluminum frame and 16 gauge housing
  • Set desired comfort level and set-back level up to 12°F
  • The thermostat learns your schedule based on detected movement and returns the area to the desired temperature using two stage operation. If the thermostat does not detect movement within one hour, setback occurs to the preset level
  • Occupancy sensor defaults to economy mode after one hour, sensor has a 94 degree angular range and a 16' linear range
  • Tamper proof grill covers the thermostat.
  • Corrosion resistant steel tubular element with brazed steel fins
  • Permanently lubricated, unit bearing, shaded pole motor with impedance protection
  • Factory preset to correct operating system voltage of heater
  • Propeller type fan blade: 1400 RPM motor; 245 CFM
  • Wall box included with heater
  • Available in white, consult factory
  • ROUGH-IN DIMENSIONS: 23 1/16" H x 14 1/4" W x 4 1/4" D GRILL DIMENSIONS: 25 1/32" H x 17 7/16" W
  • Made in USA
Model Number F3453SD
Agency Rating ETL-CUS
Wattage 3000
BTU 10239
Voltage 208
Phase 1
Amp 14.4
CFM 55
Weight (lbs) 245
