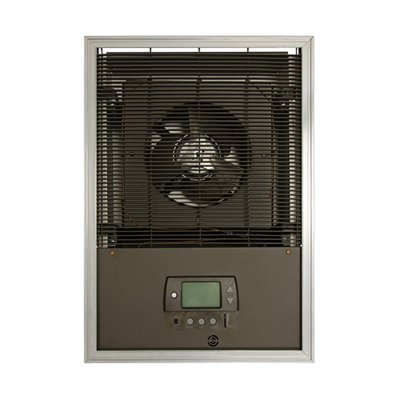

5000W 240V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can
TPI

5000W 240V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can

H3455SD
Price $3,952.00 $2,529.28
SKU: H3455SD
BTU /hr.: 17065
Fuel Type: Electric
Volts: 240
Brand: TPI

5000W 240V Heavy-Duty Fan Forced Wall Heater w Set Back Stat & back can

    Features :

  • Heavy duty architectural style
  • Automatic fan purge circuit
  • Manual reset thermal limit switch
  • Powder coated bar stock grill with extruded Aluminum frame and 16 gauge housing
  • Set desired comfort level and set-back level up to 12°F
  • The thermostat learns your schedule based on detected movement and returns the area to the desired temperature using two stage operation. If the thermostat does not detect movement within one hour, setback occurs to the preset level
  • Occupancy sensor defaults to economy mode after one hour, sensor has a 94 degree angular range and a 16' linear range
  • Tamper proof grill covers the thermostat.
  • Corrosion resistant steel tubular element with brazed steel fins
  • Permanently lubricated, unit bearing, shaded pole motor with impedance protection
  • Factory preset to correct operating system voltage of heater
  • Propeller type fan blade: 1400 RPM motor; 245 CFM
  • Wall box included with heater
  • Available in white, consult factory
  • ROUGH-IN DIMENSIONS: 23 1/16" H x 14 1/4" W x 4 1/4" D GRILL DIMENSIONS: 25 1/32" H x 17 7/16" W
  • Made in USA
Model Number H3455SD
Agency Rating ETL-CUS
Wattage 5000
BTU 17065
Voltage 240
Phase 1
Amp 20.8
CFM 245
Weight (lbs) 55
