HW
Commercial Ceiling Heater
TPI

Commercial Ceiling Heater

G3385DRP
Price $480.70
SKU: G3385DRP
BTU /hr.: 10200 BTU
Fuel Type: Electric
Volts: 277 V
Color: White
Brand: TPI
Resources

TPI Commercial Ceiling Heater G3385DRP Resources:

TPI Commercial Ceiling Heater G3385DRP Specification

Fan Forced Ceiling Heaters - 3KW Commercial Ceiling Heater - White - TPI G3385DRP

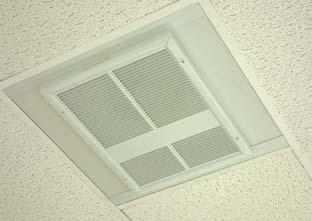

Presenting 3KW Commercial Ceiling Heater made by TPI. Model G3385DRP has white powder coated 18 ga. steel grill. Featuring optional factory installed thermostat, automatic reset thermal limit and steel block fin element. Available with disconnect switch.

3KW Commercial Ceiling Heater TPI G3385DRP Specifications
ColorWhite
Max BTU's10200
Wattage3000
Voltage277
Phase1 PH
Maximum Amps10.8
Temperature Rise54 F
Dimensions14-3/16"W x 19-5/16"H x 4"D
Grilling-Dimensions15-29/32"W x 20-27/32"H
Weight22 Lbs.
UPC686334366427

3KW Commercial Ceiling Heater TPI G3385DRP Features:

  • Fan purge circuit (requires 4 wire supply when remote wall thermostat is used with the unit)
  • Disconnect switch
  • Optional factory installed thermostat
  • White powder coated 18 ga. steel grill
  • Automatic reset thermal limit
  • Steel block fin element
  • Vane axial fan blade: 1.5kw - 4.0kw units: 700 RPM motor; 175 CFM 4.8kw units: 900 RPM motor; 200 CFM
  • Weight 22 lbs.
  • Rough in dimensions: 14 3/16" wide x 19 5/16" high x 4"D
  • Grill dimensions - 15 3/8" wide x 20 9/64" high
