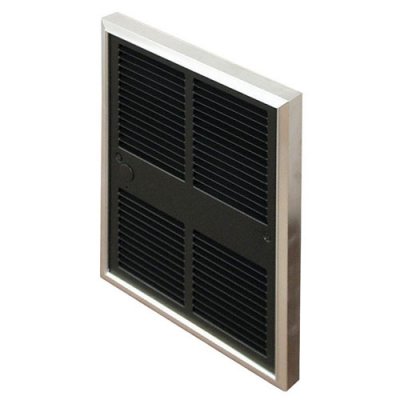

Commercial Fan Forced Wall Heater
TPI

Commercial Fan Forced Wall Heater

H30522TDWB
Price $226.05
SKU: H30522TDWB
BTU /hr.: 7680 BTU
Fuel Type: Electric
Volts: 240 V
Color: Silver / Black
Brand: TPI

Heaters - 500-2250W 240V 12-1/8" Midsized Commercial Fan Forced Wall Heater - 7680 BTU - TPI H30522TDWB

Get attractive price on Heaters made by TPI. Model H30522TDWB is 12-1/8" Midsized Commercial Fan Forced Wall Heater gives 7680 BTU output. The model features with fan purge circuit, disconnect switch and steel block fin element. It gives you flexibility to select wattage which can be chosen at time of installation. Buy now!

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H30522TDWB Specifications
SELECTABLE INSTALATION WATTAGE 500 / 750 / 1000 / 1250 / 1500 / 1750 / 2250
BTU'S7680
VOLTS240
AMPS9.4
Weight6 Lbs.
Dimension9-1/4" W x 12-1/8" H x 3-5/8" D
UPC686334945660

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H30522TDWB Features

  • Wattage selectable at time of installation.
  • Models shipped wired to highest wattage.
  • Approved for horizontal mounting - right or left discharge.
  • Fan purge circuit.
  • Disconnect switch.
  • Drywall depth embossments on back can.
  • 18 Gauge powder coated steel & extruded aluminum front.
  • Manual reset thermal limit.
  • Steel block fin element.
  • Propeller style fan blade: 1060 RPM motor; 100 CFM.
  • Rough in dimensions: 9 1/4" wide x 12 1/8" high x 3 5/8" deep.
  • Grill dimensions: 10" wide x 13 1/8" high.
  • UL listed
Accessories
1" Extender
TPI
Price $29.70
2" Extender
TPI
Price $30.25
Related ITems

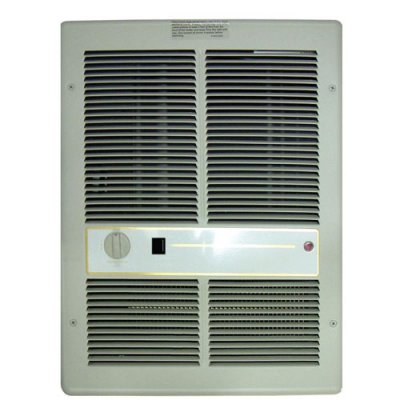

Fan Forced Wall Heater
TPI
SKU: H3317T2SRPW
BTU /HR.: 16380 BTU
Fuel Type: Electric
Volts: 240 V
Color: White

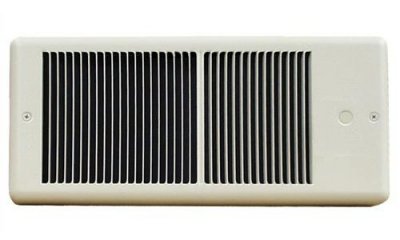

Low Profile Fan Forced Wall Heater
TPI
SKU: F4320RPW
BTU /HR.: 6826 BTU
Fuel Type: Electric
Volts: 208 V
Color: White
Fan Forced Wall Heater
TPI
SKU: F3317TSRP
BTU /HR.: 16380 BTU
Fuel Type: Electric
Volts: 208 V
Color: Ivory
Low Profile Commercial Fan Forced Wall Heater
TPI
SKU: F4420T2RP
BTU /HR.: 6826 BTU
Fuel Type: Electric
Volts: 208 V
Color: Black

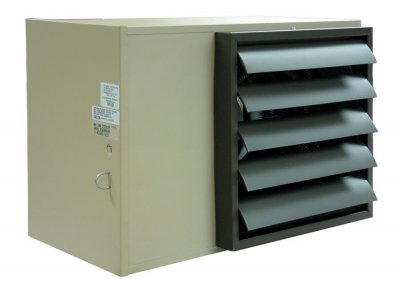

Fan Forced Unit Heater
