Commercial Fan Forced Wall Heater
TPI

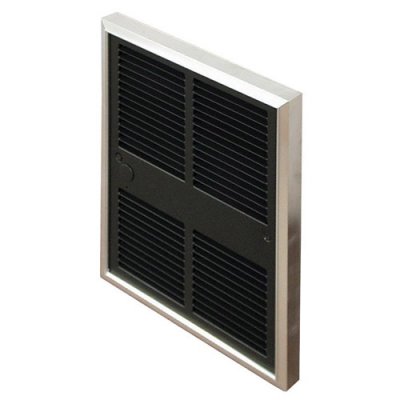

Commercial Fan Forced Wall Heater

H3052TDWB
Price $203.50
SKU: H3052TDWB
BTU /hr.: 6826 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Silver / Black
Brand: TPI

Heaters - 750-2000W 208 / 240V 12-1/8" Midsized Commercial Fan Forced Wall Heater - 6826 BTU - TPI H3052TDWB

Get the safe and instant heaters from TPI. Model H3052TDWB is 12-1/8" Midsized Commercial Fan Forced Wall Heater that gives 6826 BTU output by using just 750-2000W and 208 / 240V. The model has 18 Gauge powder coated steel and extruded aluminum front. Wattage can be selected at time of installation. The model is approved for horizontal mounting - right or left discharge.

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H3052TDWB Specifications
SELECTABLE INSTALATION WATTAGE750 / 1000 - 1500 / 2000
BTU'S 6826
VOLTS 208 / 240
AMPS8.3
Weight6 Lbs.
Dimension9-1/4" W x 12-1/8" H x 3-5/8" D
UPC686334996136

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H3052TDWB Features

  • Wattage selectable at time of installation.
  • Models shipped wired to highest wattage.
  • Approved for horizontal mounting - right or left discharge.
  • Fan purge circuit.
  • Disconnect switch.
  • Drywall depth embossments on back can.
  • 18 Gauge powder coated steel & extruded aluminum front.
  • Manual reset thermal limit.
  • Steel block fin element.
  • Propeller style fan blade: 1060 RPM motor; 100 CFM.
  • Rough in dimensions: 9 1/4" wide x 12 1/8" high x 3 5/8" deep.
  • Grill dimensions: 10" wide x 13 1/8" high.
  • UL listed
