HW
Commercial Fan Forced Wall Heater
TPI

Commercial Fan Forced Wall Heater

H30522T2DWB
Price $596.00 $381.44
SKU: H30522T2DWB
BTU /hr.: 7680 BTU
Fuel Type: Electric
Volts: 240 V
Color: Silver / Black
Brand: TPI
Resources

TPI Commercial Fan Forced Wall Heater H30522T2DWB Resources:

TPI Commercial Fan Forced Wall Heater H30522T2DWB Specification

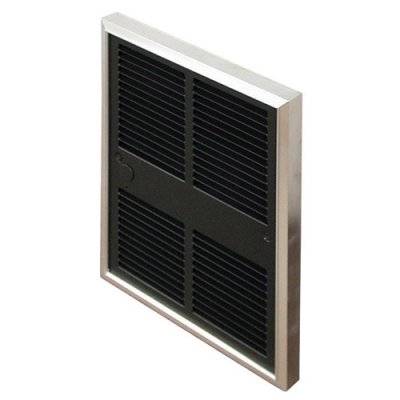

Heaters - TPI 500-2250W 240V 12-1/8" Midsized Commercial Fan Forced Wall Heater - 7680 BTU - H30522T2DWB

Give style to your home with heaters made by TPI. Model H30522T2DWB is 12-1/8" Midsized Commercial Fan Forced Wall Heater provides 7680 BTU output. The model is approved for horizontal mounting - right or left discharge, fan purge circuit and Disconnect switch. Comes with 18 Gauge powder coated steel and extruded aluminum front.

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H30522T2DWB Specifications
SELECTABLE INSTALATION WATTAGE500 / 750 / 1000 / 1250 / 1500 / 1750 / 2250
BTU'S7680
VOLTS240
AMPS9.4
Weight6 Lbs.
Dimension9-1/4" W x 12-1/8" H x 3-5/8" D
UPC686334945721

12-1/8" Midsized Commercial Fan Forced Wall Heater - TPI H30522T2DWB Features

  • Wattage selectable at time of installation.
  • Models shipped wired to highest wattage.
  • Approved for horizontal mounting - right or left discharge.
  • Fan purge circuit.
  • Disconnect switch.
  • Drywall depth embossments on back can.
  • 18 Gauge powder coated steel & extruded aluminum front.
  • Manual reset thermal limit.
  • Steel block fin element.
  • Propeller style fan blade: 1060 RPM motor; 100 CFM.
  • Rough in dimensions: 9 1/4" wide x 12 1/8" high x 3 5/8" deep.
  • Grill dimensions: 10" wide x 13 1/8" high.
  • UL listed
Accessories
1" Extender
TPI
Price $72.00 $46.08
2" Extender
TPI
Price $74.00 $47.36
4" Surface Mounting Can
TPI
Price $86.00 $55.04
