HW

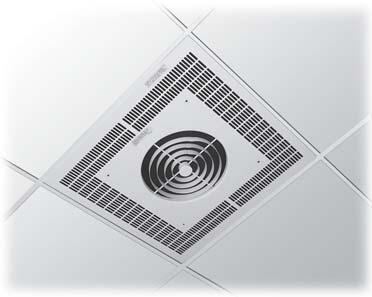

Commercial Recess Mounted Ceiling Heater
TPI

Commercial Recess Mounted Ceiling Heater

P3483A1
Price $2,439.00 $1,560.96
SKU: P3483A1
BTU /hr.: 10200 BTU
Fuel Type: Electric
Volts: 480 V
Color: White
Brand: TPI
Resources

TPI Commercial Recess Mounted Ceiling Heater P3483A1 Resources:

TPI Commercial Recess Mounted Ceiling Heater P3483A1 Specifications

We offer an efficient TPI brand 3KW Venturi Design White Recess Ceiling Heater. The commercially approved heater model P3483A1, has automatic reset thermal limit. This easy to install, our versatile heater also has enclosed steel fin sheath element for an efficient performance. The heater unit is has propeller style fan blade with 1300 RPM motor and 425 CFM.

TPI Commercial Recess Mounted Ceiling Heater - P3483A1 Specifications
Wattage3 KW
BTU's10200 BTU
VOLTS480V
Phase1 Ph
AMPS6.3
Temp Rise deg F22 F
ColorWhite
Weight50 lbs.
UPC686334318488
ListedETL Listed

Commercial Recess Mounted Ceiling Heater - P3483A1 Features:

  • Radial Diffuser
  • White Powder Coated 20 ga. grill
  • Automatic reset thermal limit and 24 volt control transformer and 24v relay (A1 suffix)
  • Enclosed steel fin sheath element
  • Propeller style fan blade: 1300 RPM motor; 425 CFM
  • Optional factory installed adjustable louver diffuser.
Accessories
Wall Thermostat
TPI
Price $332.00 $212.48
Universal Low Voltage Thermostat
TPI
Price $34.00 $21.76
Related ITems

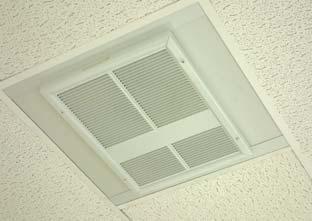

Commercial Ceiling Heater
