HW
Downflow Unit Heater
TPI

Downflow Unit Heater

F1F2605CA1
Price $740.30
SKU: F1F2605CA1
BTU /hr.: 17065 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 5 KW Single Pole Downflow Unit Heater F1F2605CA1 Resources:

TPI 5 KW Single Pole Downflow Unit Heater F1F2605CA1 Specifications

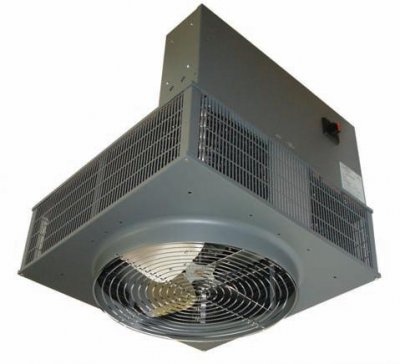

Presenting TPI F1F2605CA1 that is 5 KW Single Pole Downflow Unit Heater. This unit is made using 16 Gauge steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door. It comes equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur. This unit is equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat.

TPI 5 KW Single Pole Downflow Unit Heater F1F2605CA1 Specifications
Power5 KW
BTU's17065
Volts208
Phase1
Amps24
Control Volts24
Temp Rise34 F
CFM490
Weight75 Lbs.
UPC686334715751

TPI 5 KW Single Pole Downflow Unit Heater F1F2605CA1 Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
Accessories
Ceiling Mount Bracket
TPI
Price $81.40
