HW
Downflow Unit Heater
TPI

Downflow Unit Heater

F1F2610CA1
Price $1,303.50
SKU: F1F2610CA1
BTU /hr.: 34140 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 10 KW Single Pole Downflow Unit Heater F1F2610CA1 Resources:

TPI 10 KW Single Pole Downflow Unit Heater F1F2610CA1 Specifications

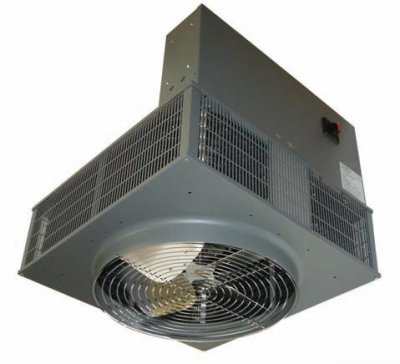

Presenting TPI F1F2610CA1 that is 10 KW Single Pole Downflow Unit Heater. This unit is made using 16 Gauge steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door. It comes equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur. This heater is equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat.

TPI 10 KW Single Pole Downflow Unit Heater F1F2610CA1 Specifications
Power10 KW
BTU's34140
Volts208
Phase1
Amps48.1
Control Volts24
Temp Rise26 F
CFM1200
Weight75 Lbs.
UPC686334715898

TPI 10 KW Single Pole Downflow Unit Heater F1F2610CA1 Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Minimum mounting height is 7.5' for all units
  • ABS Type Approved
Accessories
Ceiling Mount Bracket
TPI
Price $81.40
