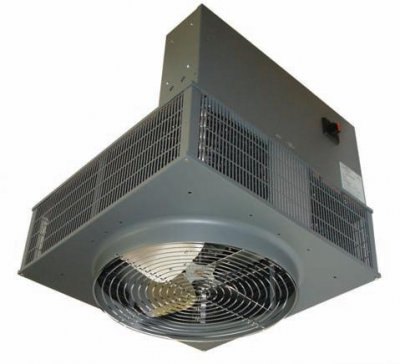

Downflow Unit Heater
TPI

Downflow Unit Heater

F3F2605CA1
Price $740.30
SKU: F3F2605CA1
BTU /hr.: 17065 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 5 KW Downflow Unit Heater F3F2605CA1 Resources:

TPI 5 KW Downflow Unit Heater F3F2605CA1 Specification

Downflow Unit Heaters - 5 KW Downflow Unit Heater - TPI F3F2605CA1 - 17065 BTU

5 KW Downflow Unit Heater comes with 17065 BTU and 16 ga. steel cabinet with epoxy powder coated finish. TPI F3F2605CA1 features control compartment with a hinged and latched access door, OSHA approved, corrosion resistant element with steel sheath and steel spiral fins, manual reset limit controls to de-energize the heater and fan purge that allows fan to operate after elements are de-energized to purge residual heat.

TPI 5 KW Downflow Unit Heater F3F2605CA1 Specifications
UPC686334715782
KW5
BTU17065
VOLTS208
PHASE3
AMPS13.9
Control Voltage24
Temperature Rise34 F
CFM490
Weight75 Lbs.

TPI 5 KW Downflow Unit Heater F3F2605CA1 Features:

CONSTRUCTION:

  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard

HEATING ELEMENT:

  • Corrosion resistant element with steel sheath and steel spiral fins

OVERHEAT PROTECTION:

  • Equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, 1 speed, 1 phase permanently lubricated and thermally protected motors.
  • Axial flow fan blade - 1570 RPM max.
  • Equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat

TEMPERATURE CONTROLS:

  • Has in-built 24 volt transformer for low voltage remote thermostat application

DISCONNECT SWITCH:

  • Equipped with in-built disconnect

INSTALLATION:

  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain
