HW
Downflow Unit Heater
TPI

Downflow Unit Heater

G1G2610CA1
Price $1,303.50
SKU: G1G2610CA1
BTU /hr.: 34130 BTU
Fuel Type: Electric
Volts: 277 V
Color: Gray
Brand: TPI
Resources

TPI Downflow Unit Heater G1G2610CA1 Resources:

TPI Downflow Unit Heater G1G2610CA1 Specification

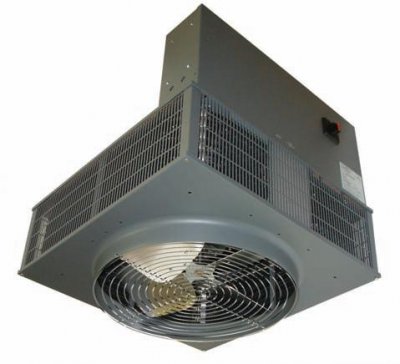

Down Flow Unit Heaters - 10000 W, 34130 BTU Down Flow Unit Heater - TPI G1G2610CA1

This is perfect choice for convenient and safe heating for your place. Get Down Flow Unit Heaters made by TPI. Model G1G2610CA1 is 10000 W, Down Flow Unit Heater that provides an excellent 34130 BTU output. The model features with 16 ga. steel cabinet in epoxy powder coated finish, control compartment with a hinged and latched access door and corrosion resistant element with steel sheath and steel spiral fins. It has axial flow fan blade that gives 1570 RPM max. speed.

Down Flow Unit Heater - 34130 BTU - TPI G1G2610CA1 Specifications
BTU34130
KW10 KW
TEMP RISE26 F
CFM1200
Amps.36.1
Phase1 PH
Voltage 277V
Control Volts24
Product Dimension15"H x 20-1/2"W x 20-1/2L
Weight75 Lbs.
UPC686334715911

Down Flow Unit Heater - 34130 BTU - TPI G1G2610CA1 Features:

CONSTRUCTION:
  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard with all models
HEATING ELEMENT:
  • Corrosion resistant element with steel sheath and steel spiral fins
OVERHEAT PROTECTION:
  • This unit come equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.
FAN and MOTOR:
  • Totally enclosed, 1 speed, 1 phase permanently lubricated, thermally protected motors with this 10 kw unit.
  • Axial flow fan blade - 1570 RPM max.
  • This model is equipped with Fan Purge which allows Fan to operate after elements are de-energized to purge residual heat
TEMPERATURE CONTROLS:
  • This 277v unit have In-Built 24 volt transformer for low voltage remote thermostat application.
INSTALLATION:
  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain.
