Dual On/Off Switches Surface Mount & Gang Box 20 Amp Per Pole

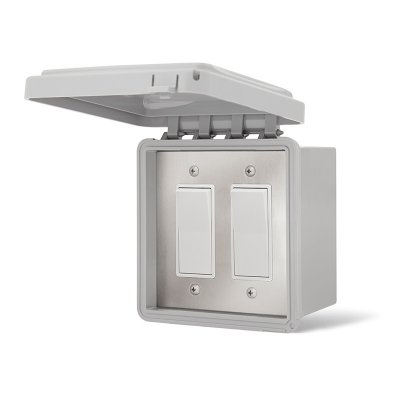

Weatherproof Dual Control Box
This switch box has dual ON/OFF switches so it can be used to control any two W-Series patio heaters, independent of each other. This gives you the flexibility to turn on either outdoor heater or turn them both on at the same time.
Keeping sleek design in mind, Infratech uses stainless steel face plates on all their patio heater switches.
Custom Controls for Outdoor Heaters
This switch box comes with a weatherproof box and sturdy hinge cover, that encases the gang box; so it can be installed outdoors and will resist the elements. The model 14-4425 switch is a perfect choice if you can't install the heater control switch in-wall.
This model allows you to install the dual switch box directly to the outside of a wall, which also makes installation much faster and much easier.
Heater Switch 14-4425 Dimensions and Features:
- Weatherproof Box: 4 1/2" h x 4 1/2" w x 2 1/8" d
- SS Plate: 4 3/8" h x 4 3/8" w
- Weatherproof Cover: 5 1/2" h x 5 1/2" w x 1 1/4" d (Tab on covers extends 1/4")
- Threaded Knock Out: 3/4"
- Range: 120/277 VAC
- Recommended not to exceed:
- 208/220 VAC=3000 Watts Max per Switch
- 240/277 VAC=4000 Watts Max per Switch
- 20 Amps Max per switch
- Made in the USA
- 3 Year Warranty
