Fan Forced Suspended Unit Heater
TPI

Fan Forced Suspended Unit Heater

P3P5125CA1N
Price $2,226.95
Please select from the Options below
Control Option
SKU: P3P5125CA1N
BTU /hr.: 85300 BTU
Fuel Type: Electric
Volts: 480 V
Color: Ivory
Brand: TPI
Resources

TPI Fan Forced Suspended Unit Heater P3P5125CA1N Resources:

TPI Fan Forced Suspended Unit Heater P3P5125CA1N Specifications

Heater Store brings to you the new P3P5125CA1N model from TPI's range of Electric Fan Forced Suspended Unit Heater. This 480 voltage commercial fan forced model comes spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow. It has heat stratification thermostat for high usage. The automatic reset type limit make it ideal for a number of locations.

TPI Fan Forced Suspended Unit Heater - P3P5125CA1N Specifications
Wattage25 KW
BTU's85.3 BTU/H
VOLTS480V
Phase3 Ph
AMPS30.1
Control Voltage24
Temp Rise deg F40/44 F
Air Throw45'
CFM2000/1800
Recom'd Mounting Ht.Hor- 12', Ver- 22'
Dimension34"H x 29-1/4"W x 10-1/16"D
Weight120 lbs.
UPC686334645980
ListedETL Listed

Fan Forced Suspended Unit Heater - P3P5125CA1N Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance

HEATING ELEMENT:

  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow

OVERHEAT PROTECTION:

  • 3.3 - 50 KW units come equipped with automatic reset type limit

FAN and MOTOR:

  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications

TEMPERATURE CONTROLS:

  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50 deg -90 deg F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls

INSTALLATION:

  • Unit Heaters can be mounted for horizontal or vertical discharge
  • 5100 series suggested for applications up to 6000 feet; for applications up to or above 6000 feet see UH series.

FIELD INSTALLED OPTIONS:

  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • 60-100KW units can be multiple stage when used with optional SC5100 and C1025 stat
  • Heat stratification thermostat
Accessories
Thermostat
TPI
Price $87.45
Wall Thermostat
TPI
Price $141.35
Related ITems
Horizontal Fan Forced Heater
TPI
SKU: H1HUH10CA1
BTU /HR.: 34100 BTU
Fuel Type: Electric
Volts: 240 V
Color: Beige
Horizontal Fan Forced Heater
TPI
SKU: F1FUH20CA1
BTU /HR.: 68300 BTU
Fuel Type: Electric
Volts: 208 V
Color: Beige

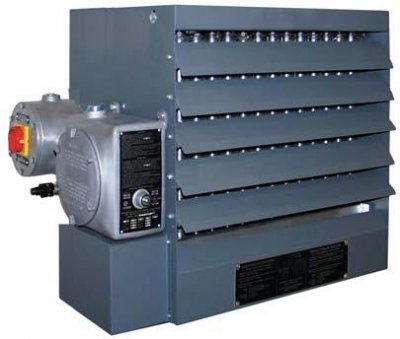

Hazardous Location Fan Forced Unit Heater
