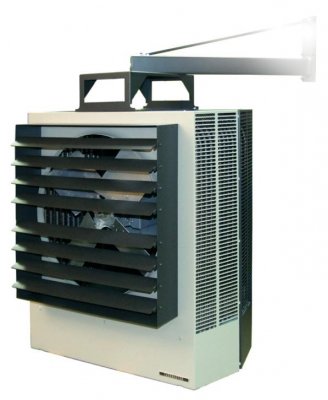

Horizontal / Vertical Fan Forced Heater
TPI

Horizontal / Vertical Fan Forced Heater

HF2B5105N
Price $1,209.00 $773.76
Please select from the Options below
Control Option
SKU: HF2B5105N
BTU /hr.: 12800 - 17100 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Ivory
Brand: TPI
Resources

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF2B5105N Resources:

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF2B5105N Specifications

5000 / 3700 W, 17.1 / 12.8 BTU/Hr Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater is one of the most sought after units by TPI. Model HF2B5105N consists of automatic reset type limit to de-energize the heater should an over-temperature situation occur and totally enclosed, 1-speed, 1-phase, permanently lubricated thermally protected motor with unit bearings. Optional low voltage and line voltage thermostats are available with an adjustable temperature range of 50-90 deg. F.

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF2B5105N Specifications
BTU17.1 / 12.8
Wattage5000 / 3700 W
Voltage240 / 208 V
Control Volts240 / 208 V
Product Weight27 Lbs.
Product Dimensions14-15/32"W x 6-1/2"D x 17-3/4"H
Phase1 / 3
Temperature Rise40 F
CFM400
Amperage20.8-12.1 / 17.8-10.4
Air Throw12'
Recommended Mounting Height9' Hortz.
9' Vert.
UPC686334645164

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF2B5105N Features:

    CONSTRUCTION:
  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance
  • HEATING ELEMENT:
  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow
  • OVERHEAT PROTECTION:
  • Equipped with automatic reset type limit to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motor with unit bearings
  • Fan over-ride purges unit of residual heat at shutdown
  • LOUVER ASSEMBLY:
  • Louvers are individually adjustable for directional control of air flow up to 15 deg. from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications
  • TEMPERATURE CONTROLS:
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50-90 deg. F
  • INSTALLATION:
  • It can be mounted for horizontal or vertical discharge
  • Suggested for applications up to 6000 feet
  • FIELD INSTALLED OPTIONS:
  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
  • cETLus listed
