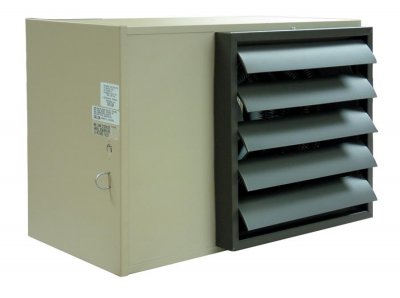

Horizontal / Vertical Fan Forced Heater
TPI

Horizontal / Vertical Fan Forced Heater

HF3B5160CA1
Price $5,652.35
Please select from the Options below
Factory Installed Controls
SKU: HF3B5160CA1
BTU /hr.: 153600 - 204700 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Beige
Brand: TPI
Resources

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF3B5160CA1 Resources:

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF3B5160CA1 Specifications

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater, TPI HF3B5160CA1, comes with 60000 / 45000 Watts of power and 204.7 / 153.6 BTU/Hr. This unique unit includes manual reset type limit to de-energize the heater should an over-temperature situation occur, optional low voltage and line voltage thermostats with an adjustable temperature range of 50-90 deg. F and heat stratification thermostat. It is designed for up to three stage heating operation and can be mounted for horizontal or vertical discharge.

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF3B5160CA1 Specifications
BTU204.7 / 153.6
Wattage60000 / 45000 W
Voltage240 / 208 V
Control Volts24 V
Product Weight141 Lbs.
Product Dimensions30-1/2"W x 14-1/2"D x 35-1/2"H
Phase3
Temperature Rise60 / 45 F
CFM3400
Amperage144.6 / 125
Air Throw50'
Recommended Mounting Height18' Hortz.
31' Vert.
UPC686334721356

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF3B5160CA1 Features:

    CONSTRUCTION:
  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance
  • HEATING ELEMENT:
  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow
  • OVERHEAT PROTECTION:
  • Equipped with manual reset type limit to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • 1 speed motor, ball bearing, thermally protected
  • Fan over-ride purges unit of residual heat at shutdown
  • LOUVER ASSEMBLY:
  • Louvers are individually adjustable for directional control of air flow up to 15 deg. from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications
  • TEMPERATURE CONTROLS:
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50-90 deg. F
  • Designed for up to three stage heating operation
  • Factory wired for low voltage controls
  • INSTALLATION:
  • It can be mounted for horizontal or vertical discharge
  • Suggested for applications up to 6000 feet
  • FIELD INSTALLED OPTIONS:
  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
  • cETLus Listed
