HW
Line Voltage Thermostat
TPI

Line Voltage Thermostat

HLT2
Price $332.75
SKU: HLT2
Fuel Type: Electric
Volts: 120 - 277 V
Color: Stainless Steel
Brand: TPI

Line Voltage Thermostats - TPI Hazardous Location Double Pole Thermostat - 120-277V - 40-110°F - HLT-2 - Specialty Thermostats

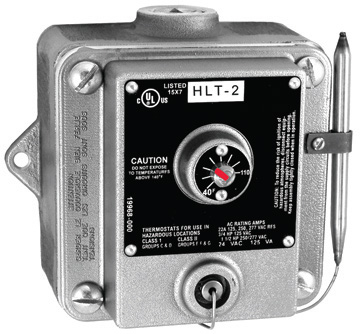

TPI Hazardous Location Line Voltage Thermostat HLT-2
TypeDPDT
Temperature Range40° to 110°F / 4.5° to 43°C
Voltage125-227V
Max Amp22 Amp
Dimension5.5"H x 6.375"W x 5.625"D
Weight5 lbs
ApprovalsClass I Group C & D
Class II Group E, F, & G
NEMA Class Seven Div I
UPC686334-523165

TPI Hazardous Location Line Voltage Thermostat HLT-2 Features:

  • DPDT Model
  • Snap Action Switch Operation
  • 40-110°F Temperature Range
  • 120-277 V Voltage
  • Casting Top/Bottom for 3/4" Conduit
  • 1/2" Thick Cast Aluminum Housing
  • Nema Class 7 Div 1 Approved
  • Screwdriver Temperature Adjustment Slot
  • Has External Bulb
  • Capillary Room Temperature Sensor
  • Dimensions 5.75" x 5.625" x 4.5"
  • UL Listed
Accessories
Related ITems

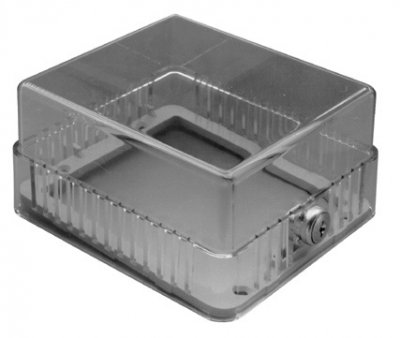

Thermostat Guard
TPI
SKU: TG1
Color: Gray
Stratification Wall Thermostat
TPI
SKU: TC1602
Fuel Type: Electric
Volts: 120 - 277 V
Thermostat Guard
TPI
SKU: TG2B
Color: Gray
Line Voltage Thermostat
TPI
SKU: KT110
Fuel Type: Electric
Volts: 125 - 250 V
Color: Black

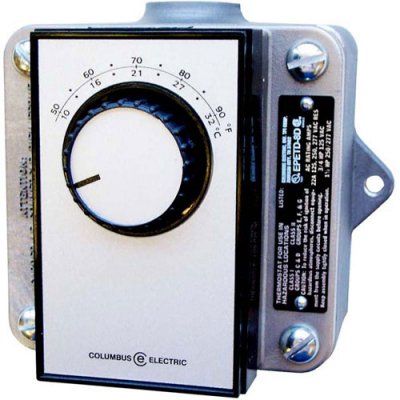

Line Voltage Thermostat
TPI
SKU: EPETD8S
Fuel Type: Electric
Volts: 120 - 277 V
Color: Stainless Steel
