HW
Line Voltage Thermostat
TPI

Line Voltage Thermostat

EPETP8S
Price $229.35
SKU: EPETP8S
Fuel Type: Electric
Volts: 120 - 480 V
Color: Stainless Steel
Brand: TPI

Line Voltage Thermostats - TPI Hazardous Location Single Pole Thermostat - 480V - 50-90°F - EPETP8S - Specialty Thermostats

TPI Hazardous Location Line Voltage Thermostat EPETP8S
TypeSPDT
Temperature Range50° to 90°F / 10° to 32°C
Voltage125-480V
Max Amp22 Amp
Dimension5.5"H x 6.375"W x 5.625"D
Weight5 lbs
ApprovalsClass I Group C & D
Class II Group E, F, & G
NEMA Class Seven Div I
UPC686334-528061

TPI Hazardous Location Line Voltage Thermostat EPETP8S Features:

  • SPDT Model
  • Snap Action Switch Operation
  • 50-90°F Temperature Range
  • 2-4°F Rated Differential
  • 120-480 V Voltage
  • Casting Top/Bottom for 3/4" Conduit
  • 1/2" Thick Cast Aluminum Housing
  • Includes 3/4" to 1/2" Conduit adapter
  • Includes Conduit Plug
  • Nema Class 7 Div 1 Approved
  • Class I Group C & D; Class II Group E,F, & G Approved
  • Not Rated For Group B
  • Screw Terminal Connections
  • Bi-Metal Temperature Sensor
  • Plastic Temperature Adjustment Knob
  • Dimensions 5.75" x 5.625" x 4.5"
Accessories
Related ITems

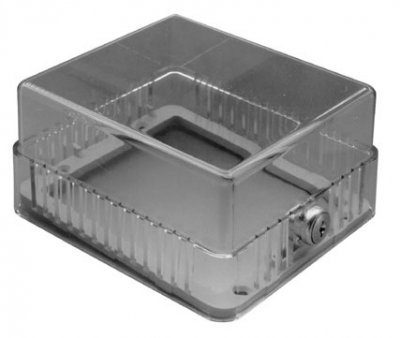

Thermostat Guard
TPI
SKU: TG3
Color: Gray
Low Voltage Relay
TPI
SKU: 24A01G-3
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Wall Thermostat
TPI
SKU: TFS5102
Fuel Type: Electric

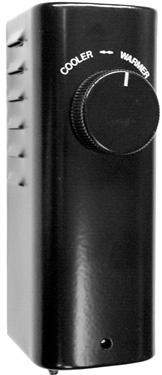

Line Voltage Thermostat
