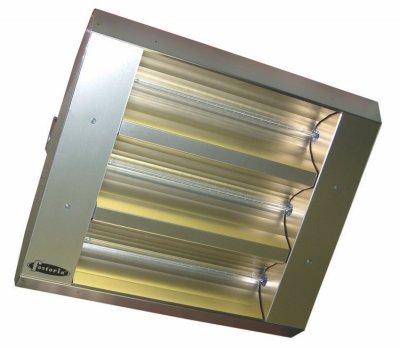

Mul-T-Mount Infrared Heater
TPI

Mul-T-Mount Infrared Heater

34290THS-208V
Price $726.55
SKU: 34290THS-208V
BTU /hr.: 17065 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 34290THSS208V Resources:

TPI Mul-T-Mount Infrared Heater 34290THSS208V Specifications

We have mul-t-mount infrared heater manufactured by TPI. Model 342-90-THSS-208V operates on 208 Volt supply providing 17,065 BTU's. It also has in-built surface mounting brackets allows for fixture adjustment up to 45 Deg horizontal tilt. This unit has stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. It is durable in harsh atmospheres & outdoor environments.

TPI Mul-T-Mount Infrared Heater 34290THSS208V Specifications
Power5000 Watts
Fuel TypeElectric
BTU17,065 BTU's
Voltage208 Volts
FinishStainless Steel
Reflector Pattern90 Deg Symmetrical
Replacement Element63025209
Box Weight25 Lbs.
UPC686334480994
Length ( A )33"
Width ( B )15"
Height ( C )10-7/8"
Mounting Clearance ( C )32-1/2"

TPI Mul-T-Mount Infrared Heater 34290THSS208V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 2-Lamp wiring, single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
