Mul-T-Mount Infrared Heater
TPI

Mul-T-Mount Infrared Heater

34360THSS240V
Price $1,020.25
SKU: 34360THSS240V
BTU /hr.: 25298 BTU
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 34360THSS240V Resources:

TPI Mul-T-Mount Infrared Heater 34360THSS240V Specifications

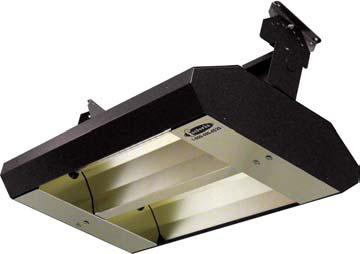

Introducing TPI 34360THSS240V, Mul-T-Mount Electric Infrared Heater with 7500 Watts on 240 V power supply. This unit has 60 deg symmetrical reflecting pattern and end caps for superior reflectivity. It has 20 gage stainless steel construction for durability and corrosion-resistance. Housing is ETL listed for both indoor and totally exposed outdoor applications. Clear quartz lamps have 96% radiant delivery efficiency with high moisture and thermal shock resistance and instantaneous heat-up and cool-down performance.

TPI Mul-T-Mount Infrared Heater 34360THSS240V Specifications
Power7500 Watts
Fuel TypeElectric
BTU25298 BTU's
Voltage240 Volts
FinishStainless Steel
Reflector Pattern60 Deg Symmetrical
Replacement Element63025249
Box Weight33 Lbs.
UPC686334481274
Length ( A )33"
Width ( B )21-1/2"
Height ( C )10-7/8"
Mounting Clearance ( C )34"

TPI Mul-T-Mount Infrared Heater 34360THSS240V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 3-Lamp wiring, three or single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
