Mul-T-Mount Infrared Heater
TPI

Mul-T-Mount Infrared Heater

34390THSS208V
Price $1,020.25
SKU: 34390THSS208V
BTU /hr.: 25298 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 34390THSS208V Resources:

TPI Mul-T-Mount Infrared Heater 34390THSS208V Specifications

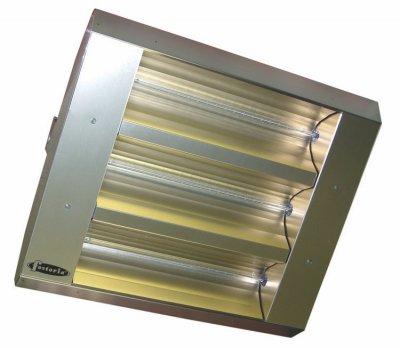

We bring to you mul-t-mount infrared heater that operates on 208 Volts supply. Model TPI 34390THSS208V has 90 deg symmetrical reflecting pattern and end caps for superior reflectivity. Clear quartz lamps used in the heater have high moisture and thermal shock resistance with instantaneous heat-up and cool-down performance to suite your needs. Its 20 gage stainless steel construction makes it suitable for both indoor and totally exposed outdoor uses.

TPI Mul-T-Mount Infrared Heater 34390THSS208V Specifications
Power7500 Watts
Fuel TypeElectric
BTU25298 BTU's
Voltage208 Volts
FinishStainless Steel
Reflector Pattern90 Deg Symmetrical
Replacement Element63025209
Box Weight33 Lbs.
UPC686334481298
Length ( A )33"
Width ( B )21-1/2"
Height ( C )10-7/8"
Mounting Clearance ( C )34"

TPI Mul-T-Mount Infrared Heater 34390THSS208V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 3-Lamp wiring, three or single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
