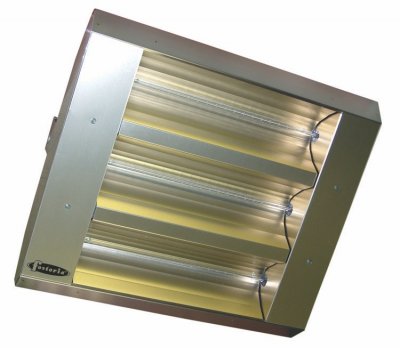

Mul-T-Mount Infrared Heater
TPI

Mul-T-Mount Infrared Heater

34390THSS480V
Price $1,020.25
SKU: 34390THSS480V
BTU /hr.: 25298 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 34390THSS480V Resources:

TPI Mul-T-Mount Infrared Heater 34390THSS480V Specifications

Available Mul-T-Mount Infrared Heater, 34390THSS480V, manufactured by TPI. This unit has 90 deg symmetrical reflecting pattern and end caps for superior reflectivity. It has 20 gage stainless steel construction for durability and corrosion-resistance. Housing is ETL listed for both indoor and totally exposed outdoor applications. Clear quartz lamps have 96% radiant delivery efficiency with high moisture and thermal shock resistance and instantaneous heat-up and cool-down performance.

TPI Mul-T-Mount Infrared Heater 34390THSS480V Specifications
Power7500 Watts
Fuel TypeElectric
BTU25298 BTU's
Voltage480 Volts
FinishStainless Steel
Reflector Pattern90 Deg Symmetrical
Replacement Element63025489
Box Weight33 Lbs.
UPC686334811835
Length ( A )33"
Width ( B )21-1/2"
Height ( C )10-7/8"
Mounting Clearance ( C )34"

TPI Mul-T-Mount Infrared Heater 34390THSS480V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 3-Lamp wiring, three or single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
Accessories
Two Wall Mount Brackets
TPI
Price $145.75
Recessed Mounting Frame
TPI
Price $285.45
Heating Element
TPI
Price $104.50
Related ITems
Mul-T-Mount Infrared Heater
Fostoria
SKU: 22230TH277V
BTU /HR.: 10922 btu
Fuel Type: Electric
Volts: 277V
Color: Brown
Mul-T-Mount Infrared Heater
Fostoria
SKU: 34290TH480V
BTU /HR.: 17065 btu
Fuel Type: Electric
Volts: 480 V
Color: Brown
Quartz Infrared Heater
TPI
SKU: OCH-46-240V-SS
BTU /HR.: 6826 BTU
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Stainless Steel Mul-T-Mount Infrared Heater
Fostoria
SKU: 222A30THSS480V
BTU /HR.: 10922 btu
Fuel Type: Electric
Volts: 480V
Color: Stainless Steel

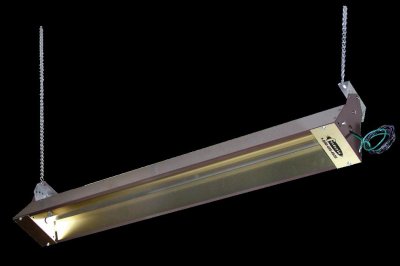

Quartz Infrared Heater
TPI
SKU: OCH-46-277V-SS
BTU /HR.: 6826 BTU
Fuel Type: Electric
Volts: 277 V
Color: Stainless Steel

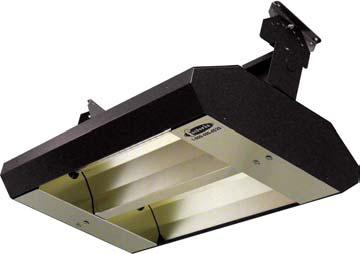

Stainless Steel Multi-T-Mount Infrared Heater
