HW
Mul-T-Mount Infrared Heater
TPI

Mul-T-Mount Infrared Heater

46330THSS480V
Price $2,867.00 $1,834.88
SKU: 46330THSS480V
BTU /hr.: 37372 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 46330THSS480V Resources:

TPI Mul-T-Mount Infrared Heater 46330THSS480V Specifications

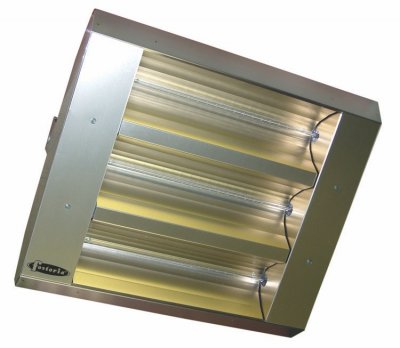

TPI 46330THSS480V, Mul-T-Mount Infrared Heater in stainless steel finish. Its 30 deg symmetrical .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity. Clear quartz lamps used in the heater have high moisture and thermal shock resistance with instantaneous heat-up and cool-down performance to suite your needs. Its 20 gage stainless steel construction makes it suitable for both indoor and totally exposed outdoor uses.

TPI Mul-T-Mount Infrared Heater 46330THSS480V Specifications
Power10950 Watts
Fuel TypeElectric
BTU37372 BTU's
Voltage480 Volts
FinishStainless Steel
Reflector Pattern30 Deg Symmetrical
Replacement Element63036489
Box Weight41 Lbs.
UPC686334810531
Length ( A )46"
Width ( B )21-1/2"
Height ( C )10-7/8"
Mounting Clearance ( C )45-1/2"

TPI Mul-T-Mount Infrared Heater 46330THSS480V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 3-Lamp wiring, three or single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
