Mul-T-Mount Infrared Heater

46390THSS480V
Price $1,194.60
SKU: 46390THSS480V
BTU /hr.: 37372 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Mul-T-Mount Infrared Heater 46390THSS480V Resources:

TPI Mul-T-Mount Infrared Heater 46390THSS480V Specifications

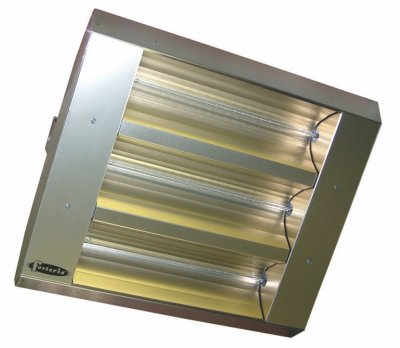

Presenting electric heater with clear quartz infrared elements by TPI. Model 46390THSS480V with 10950 Watts power has gold-anodized aluminum reflectors. It has fixture adjustment up to 45 degree horizontal tilt with symmetrical reflectors. Housing of high-grade stainless steel is, especially, recommended for corrosive and harsh environment. Ideal for commercial, industrial, indoor or outdoor use, such as spot heating, snow melting, high bay areas and sidewalk ice melting.

TPI Mul-T-Mount Infrared Heater 46390THSS480V Specifications
Power10950 Watts
Fuel TypeElectric
BTU37372 BTU's
Voltage480 Volts
FinishStainless Steel
Reflector Pattern90 Deg Symmetrical
Replacement Element63036489
Box Weight41 Lbs.
UPC686334810937
Length ( A )46"
Width ( B )21-1/2"
Height ( C )10-7/8"
Mounting Clearance ( C )45-1/2"

TPI Mul-T-Mount Infrared Heater 46390THSS480V Features:

  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications.
  • Listed for recessed applications.
  • 20 Gauge stainless steel housings.
  • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity
  • 50% higher Watt densities for 3-element units.
  • 3-Lamp wiring, three or single phase.
  • Unit has non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments.
  • High temperature lead wires.
  • Clear Quartz Lamp(s) Included.

Mounting Clearance Information:

Mounting ClearancesRecommended Mounting Height
2 & 3 Lamp Models 3" from ceiling 30 Deg Symmetric & A30 Deg Asymmetric Reflector - Indoor 14' - 30'
24" from vertical surface60 Deg Symmetric & A60 Deg Asymmetric Reflector - Indoor12' - 18'
2 Lamp Models72" from face of heater to combustible surface90 Deg Symmetric Reflector - Indoor8' - 12'
Mounting Clearances96" from face of heater to combustible surface30 Deg Symmetric & A30 Deg Asymmetric Reflector - Outdoor8' - 10'
