HW
Packaged Duct Heater
TPI

Packaged Duct Heater

8PD2012203
Price $925.65
SKU: 8PD2012203
Fuel Type: Electric
Volts: 208 V
Color: Galvanized Steel
Brand: TPI
Resources

TPI 3 Phase Package Duct Heater 8PD2012203 Resources:

TPI 3 Phase Package Duct Heater 8PD2012203 Specifications

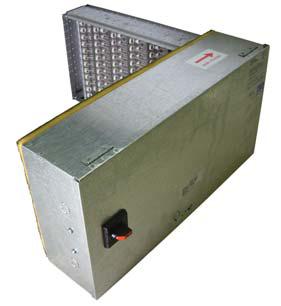

We bring you TPI 3 phase package duct heater having 208V / 20KW power consumption to get relief from winter. Model 8PD2012203 has door interlock disconnect switch and differential pressure fan inter-lock switch. It has primary automatic reset temperature limiting control. The element rack and compartment are made up of galvanized steel.

TPI 3 Phase Package Duct Heater 8PD2012203 Specifications
kW20
Power Volts/Phase208-3
Duct Dimensions (Height x Width)12" A x 20" W
Heater Dimensions9-1/8" C x 6-1/2" E x 40" M
AMPS55.6
Control Steps2
Weight39 Lbs.
UPC686334617123

TPI 3 Phase Package Duct Heater 8PD2012203 Features:

  • Galvanized Steel Element Rack - Always 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance
  • Galvanized Steel Compartment with 1/2" fiberglass Insulation & Hinged Cover
  • Door Interlock Disconnect Switch
  • Primary Automatic Reset Temp Limiting Control
  • Load Carrying Secondary over Temperature Protective Device(s)
  • Definite Purpose Magnetic Contactor(s)
  • Differential Pressure Fan Inter-lock Switch
  • Step Down Control Transformer / 24 volt
  • Permanently Attached Wiring Diagram on inside of Terminal Compartment Cover
