Packaged Duct Heater
TPI

Packaged Duct Heater

PD30162423
Price $1,031.80
SKU: PD30162423
Fuel Type: Electric
Volts: 240 V
Color: Galvanized Steel
Brand: TPI
Resources

TPI Packaged Duct Heater PD30162423 Resources:

TPI Packaged Duct Heater PD30162423 Specifications

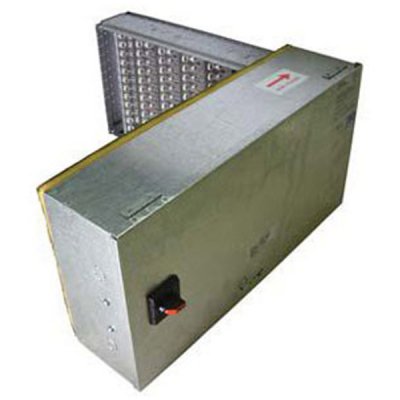

Presenting TPI 30KW three phase package duct heater having galvanized steel compartment with 1/2" fiberglass insulation & hinged cover. Model PD30162423 includes primary automatic reset temperature limiting control with door interlock disconnect switch. This unit also includes 24 volt step down control transformer and definite purpose magnetic contactor.

30 KW Packaged Duct Heater TPI PD30162423 Specifications
Power30 KW
Voltage240
Phase3
Duct Height16" A
Duct Width24" W
Dimensions4-3/4" C x 6-1/2" E x 25" M
Amperage72.3
Control Step2
UPC686334617222
Weight57 Lbs.

30 KW Packaged Duct Heater TPI PD30162423 Features:

  • Galvanized Steel Element Rack - Always 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance
  • Galvanized Steel Compartment with 1/2" fiberglass Insulation & Hinged Cover
  • Door Interlock Disconnect Switch
  • Primary Automatic Reset Temp Limiting Control
  • Load Carrying Secondary over Temperature Protective Device
  • Definite Purpose Magnetic Contactor
  • Differential Pressure Fan Inter-lock Switch
  • Step Down Control Transformer / 24 volt
  • Permanently Attached Wiring Diagram on inside of Terminal Compartment Cover
