Quartz Infrared Heater
TPI

Quartz Infrared Heater

OCH-46-120V
Price $519.00 $332.16
SKU: OCH-46-120V
BTU /hr.: 5120 BTU
Fuel Type: Electric
Volts: 120 V
Color: Brown
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-46-120V Resources:

TPI Electric Infrared Heater OCH-46-120V User Manual

120 V Outdoor / Indoor Rated Quartz Electric Infrared Heater by TPI is one of the most selling infrared heaters around the globe. Model OCH-46-120V is a great way to add warmth to any industrial space during winter days and nights. This unique unit is ideal for patio areas, bus shelters, smoking areas, workstations, lobby entrance ways and vestible areas. It features frosted quartz tube heating element, 60 symmetric heat pattern, gold anodized aluminum reflector, end caps, and more.

TPI Electric Infrared Heater OCH-46-120V Specifications
BTUs5120 BTU
Wattage1500 W
Color / FinishBrown
Product Dimensions44.4" L x 5.4" W x 6.5" H
Voltage120 V
Amperage12.5 A
Product Weight10 Lbs.
Cordset IncludedNo
UPC686334480444
Recommended Mounting Height7' - 9'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-3784
CertificationETL Listed

TPI Electric Infrared Heater OCH-46-120V Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: High-temperature brown powder coated finish. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • This unit is direct wire and includes (3) 24" long lead wires for field connections in a remote enclosure (not supplied). Optional electrical box enclosure is available for this unit to allow for direct wire connection to the end of the heater housing.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
Accessories
Wireguard For OHC46 Series
TPI
Price $95.00 $60.80
Two Wall Mount Brackets
TPI
Price $350.00 $224.00
Variable Heat Controller
TPI
Price $267.00 $170.88
Variable Heat Controller
TPI
Price $985.00 $630.40
Quartz Tube Heating Element
TPI
Price $208.00 $133.12
Related ITems

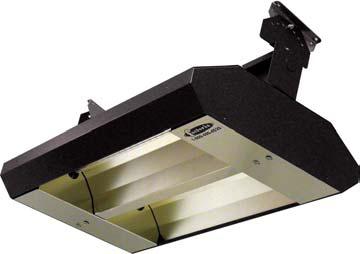

Stainless Steel Mul-T-Mount Infrared Heater
