Quartz Infrared Heater
TPI

Quartz Infrared Heater

OCH-57-208V-SS
Price $672.00 $430.08
SKU: OCH-57-208V-SS
BTU /hr.: 10239 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-57-208V-SS Resources:

TPI Electric Infrared Heater OCH-57-208V-SS User Manual

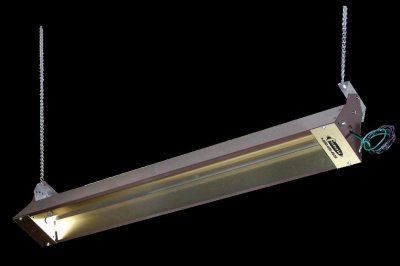

Available with us is 208 V Outdoor / Indoor Rated Quartz Electric Infrared Heater, TPI OCH-57-208V-SS, in stainless steel finish. It is equipped with frosted quartz tube heating element, corrosion resistant stainless steel 24-gauge housing, 60 symmetric heat pattern, gold anodized aluminum reflector, end caps, two 2 ft. long mounting chains, four S-hooks and more. This reliable unit can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.

TPI Electric Infrared Heater OCH-57-208V-SS Specifications
BTUs10239 BTU
Wattage3000 W
Color / FinishStainless Steel
Product Dimensions55.4" L x 5.4" W x 6.5" H
Voltage208 V
Amperage14.4 A
Product Weight12 Lbs.
Cordset IncludedCord Only, No Plug
UPC686334480574
Recommended Mounting Height8' - 10'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-5060
CertificationETL Listed

TPI Electric Infrared Heater OCH-57-208V-SS Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: Corrosion resistant stainless steel 24-gauge housing. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • Includes an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
