Quartz Infrared Heater
TPI

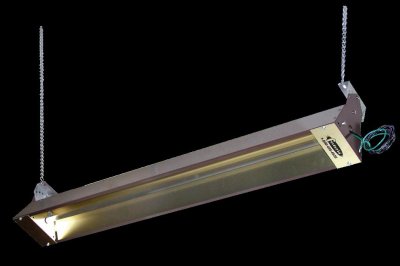

Quartz Infrared Heater

OCH-46-277V
Price $184.25
SKU: OCH-46-277V
BTU /hr.: 6826 BTU
Fuel Type: Electric
Volts: 277 V
Color: Brown
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-46-277V Resources:

TPI Electric Infrared Heater OCH-46-277V User Manual

We are proud to present 277 V Outdoor / Indoor Rated Quartz Electric Infrared Heater, with 6826 BTU output. TPI OCH-46-277V is available in high-temperature brown powder coated finish. This ETL listed unit is perfect for patio areas, bus shelters, smoking areas, workstations, lobby entrance ways and vestible areas. It consists of frosted quartz tube heating element with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. The .040 gold anodized aluminum reflector and end caps ensure superior reflectiveness.

TPI Electric Infrared Heater OCH-46-277V Specifications
BTUs6826 BTU
Wattage2000 W
Color / FinishBrown
Product Dimensions44.4" L x 5.4" W x 6.5" H
Voltage277 V
Amperage7.2 A
Product Weight10 Lbs.
Cordset IncludedNo
UPC686334480475
Recommended Mounting Height7' - 9'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-5018
CertificationETL Listed

TPI Electric Infrared Heater OCH-46-277V Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: High-temperature brown powder coated finish. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • This unit is direct wire and includes (3) 24" long lead wires for field connections in a remote enclosure (not supplied). Optional electrical box enclosure is available for this unit to allow for direct wire connection to the end of the heater housing.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
