HW
Quartz Infrared Heater
TPI

Quartz Infrared Heater

OCH-57-277V
Price $210.65
SKU: OCH-57-277V
BTU /hr.: 10239 BTU
Fuel Type: Electric
Volts: 277 V
Color: Brown
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-57-277V Resources:

TPI Electric Infrared Heater OCH-57-277V User Manual

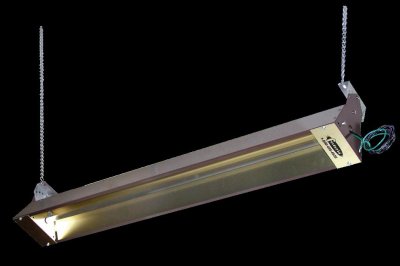

We bring you 277 V Outdoor / Indoor Rated Quartz Electric Infrared Heater with high-temperature brown powder coated finish. TPI OCH-57-277V has 60 symmetric heat pattern, frosted quartz tube heating element, .040 gold anodized aluminum reflector and end caps for superior reflectiveness. This unit is direct wire and includes (3) 24" long lead wires for field connections in a remote enclosure. This ETL listed unit is a perfect addition to your indoors or outdoors.

TPI Electric Infrared Heater OCH-57-277V Specifications
BTUs10239 BTU
Wattage3000 W
Color / FinishBrown
Product Dimensions55.4" L x 5.4" W x 6.5" H
Voltage277 V
Amperage10.8 A
Product Weight12 Lbs.
Cordset IncludedNo
UPC686334480505
Recommended Mounting Height8' - 10'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-5059
CertificationETL Listed

TPI Electric Infrared Heater OCH-57-277V Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: High-temperature brown powder coated finish. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • This unit is direct wire and includes (3) 24" long lead wires for field connections in a remote enclosure (not supplied). Optional electrical box enclosure is available for this unit to allow for direct wire connection to the end of the heater housing.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
