HW
Quartz Infrared Heater
TPI

Quartz Infrared Heater

OCH-57-277V-SS
Price $239.80
SKU: OCH-57-277V-SS
BTU /hr.: 10239 BTU
Fuel Type: Electric
Volts: 277 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-57-277V-SS Resources:

TPI Electric Infrared Heater OCH-57-277V-SS User Manual

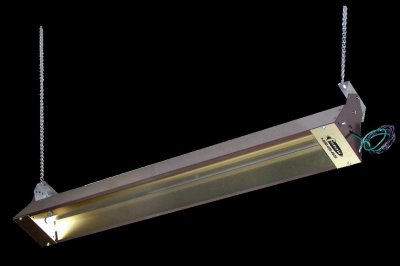

277 V Outdoor / Indoor Rated Quartz Electric Infrared Heater with 10239 BTU output and stainless steel housing, is every user's delight. This remarkable unit is best suited for patio areas, bus shelters, smoking areas, workstations, lobby entrance ways, and vestible areas. Its frosted quartz tube heating element includes frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Model OCH-57-277V-SS also includes an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection.

TPI Electric Infrared Heater OCH-57-277V-SS Specifications
BTUs10239 BTU
Wattage3000 W
Color / FinishStainless Steel
Product Dimensions55.4" L x 5.4" W x 6.5" H
Voltage277 V
Amperage10.8 A
Product Weight12 Lbs.
Cordset IncludedNo
UPC686334480581
Recommended Mounting Height8' - 10'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-5059
CertificationETL Listed

TPI Electric Infrared Heater OCH-57-277V-SS Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: Corrosion resistant stainless steel 24-gauge housing. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • Includes an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
