Quartz Lamp Fits MM-33A Heater
TPI

Quartz Lamp Fits MM-33A Heater

631-25489
Price $108.35
SKU: 631-25489
Fuel Type: Electric
Brand: TPI

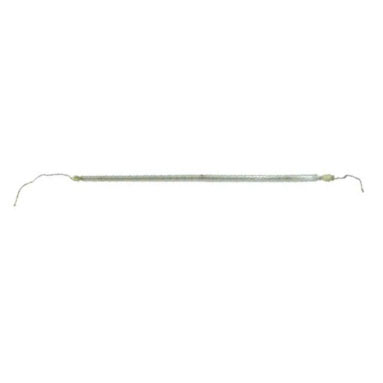

Infrared Heater Accessories - TPI Clear Quartz Lamp - Fits 342, 343 or MM-33A Infrared Heaters - 631-25489 - 2500W

TPI Electric Infrared Heating Replacement Element 631-25489 fits well with Clear Quartz Lamp MM-33A Heater. It produces a power of 2500 watts while using 480 Volts for proper working. It provides clear horizontal burning with excellent resistance to thermal shock. With a color temperature of approximately 4100 Fahrenheit, it has sealed porcelain end caps.

TPI Electric Infrared Clear Quartz Lamp - 631-25489 - Specifications
UPC 686334440363
Model No 631-25489
Volts 480V
Watts 2500 W
Diameter 3/8" Diameter
Overall Length 28-11/16 inch
Heated Length 25 inch
Operate 50 / 60 Hertz
Fits Model 342, 343 or MM-33A
Color Temperature Emitted Approx. 4100 F (High Brightness)
Radiant Efficiency Approximately 96%
Life Expectancy 5,000 hours (4yr. Pro-rated Warranty)
Model Suffix: 631 = Vertical OR Horizontal Burning - Clear

TPI Electric Infrared Heater Accessories 631-25489 Features

  • Wattage: 2500W
  • Color temperature emitted: approx. 4100 F (high brightness)
  • Approximately 96% radiant efficiency
  • Excellent resistance to thermal shock
  • 3/8" Diameter clear quartz envelope
  • Coiled tungsten filament; sealed porcelain end caps; halogen gas filled
  • Model Fits 342, 343 or MM-33A
