Single On/Off Switch Flush Mount & Gang Box 20 Amp Per Pole

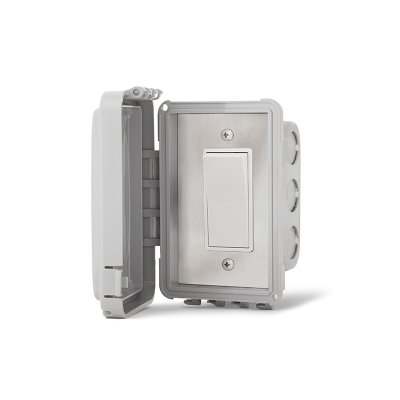

On/Off Switch with Weatherproof Cover
This simple On/Off switch can be used to control your W Series heater. This switch comes with a weatherproof cover, stainless steel faceplate, and gang box for in-wall exposed exterior locations.
#14-4410 Dimensions and Features:
- Gang Box: 4" h x 2 1/8" w x 1 7/8" d
- SS Plate: 4 3/8" h x 2 5/8" w
- Weatherproof Cover: 5 1/2" h x 3 3/4" w x 1 1/4" d (Tab on covers extends 1/4")
- Range: 120/277 VAC
- Recommended not to exceed:
- 208/220 VAC=3000 Watts Max per Switch
- 240/277 VAC=4000 Watts Max per Switch
- 20 Amps Max Load
- Made in the USA
- 3 Year Warranty
Indoor & Outdoor Heating Solutions
Now you can enjoy enhanced, climate-controlled comfort in any residential or commercial setting. These control options range from simple on & off switches, to comprehensive solid state controls that can also provide zoning and timer functions.
Infratech can match controls to any heating configuration, setting or budget. For additional information, contact us today.
