HW
Unit Heater
TPI

Unit Heater

G1G5107CA1L
Price $776.05
Please select from the Options below
Control Option
SKU: G1G5107CA1L
BTU /hr.: 25600 BTU
Fuel Type: Electric
Volts: 277 V
Color: Gray
Brand: TPI
Resources

TPI Downflow Unit Heater G1G5107CA1L Resources:

TPI Downflow Unit Heater G1G5107CA1L Specification

Electric Forced Air Heaters - 7500 W, 25.6 BTU 24-5/16" 5100 Series Unit Heater - TPI G1G5107CA1L

The Electric Forced Air Heaters made by TPI are great way to add warmth and comfort to any room. Model G1G5107CA1L is 7500 W, 24-5/16" high 5100 Series Unit Heater. It gives an 25.6 BTU output. The model has 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door which simplify wiring, installation and maintenance. The 5100 series heaters are suggested for applications up to 6000 feet.

5100 Series Unit Heater - 25.6 BTU - TPI G1G5107CA1L Specifications
BTU25.6
KW7.5 KW
TEMP RISE34 F
CFM700
Amps.27.1
Phase1 PH
Air throw22'
Voltage 277V
Recommended Mounting Height Hortz10'
Recommended Mounting Height Vert12'
Product Dimension24-5/16"H x 21-1/2"W x 6-1/2"D
Weight54 Lbs.
UPC686334645928

5100 Series Unit Heater - 25.6 BTU - TPI G1G5107CA1L Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance

HEATING ELEMENT:

  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow

OVERHEAT PROTECTION:

  • This 7.5 KW unit equipped with automatic reset type limit.

FAN and MOTOR:

  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit this 7.5 KW model.
  • Fan over-ride purges unit of residual heat at shutdown

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow up to 15 Deg. from straight horizontal.
  • Optional diffusers available for down flow (vertical discharge) applications

TEMPERATURE CONTROLS:

  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50 deg -90 deg F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls

INSTALLATION:

  • This unit heaters can be mounted for horizontal or vertical discharge
  • 5100 series suggested for applications up to 6000 feet; for applications up to or above 6000 feet see UH series.

FIELD INSTALLED OPTIONS:

  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
  • UL listed
Accessories
Anemostat Diffuser
TPI
Price $271.15
Radial Diffuser
TPI
Price $300.30
Vertical Mount Bracket
TPI
Price $173.25
Thermostat
TPI
Price $128.70
Wall Thermostat
TPI
Price $136.95
Wall Thermostat
TPI
Price $282.15
Thermostat
TPI
Price $87.45
Wall Thermostat
TPI
Price $141.35
Related ITems

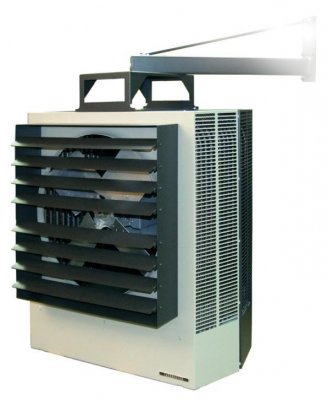

Horizontal / Vertical Fan Forced Heater
