HW
Unit Heater
TPI

Unit Heater

G1G5110CA1L
Price $855.25
Please select from the Options below
Control Option
SKU: G1G5110CA1L
BTU /hr.: 34100 BTU
Fuel Type: Electric
Volts: 277 V
Color: Ivory
Brand: TPI
Resources

TPI Downflow Unit Heater G1G5110CA1L Resources:

TPI Downflow Unit Heater G1G5110CA1L Specification

Electric Forced Air Heaters - 10000 W, 34.1 BTU 24-5/16" 5100 Series Unit Heater - TPI G1G5110CA1L

When the weather turns frosty, keep your indoor or outdoor workspace warm and cozy with Electric Forced Air Heaters made by TPI. Model G1G5110CA1L is 10000 W, 24-5/16" high 5100 Series Unit Heater that gives an excellent 34.1 BTU output. The model has spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow. The louvers are individually adjustable for directional control of air flow up to 15 deg. from straight horizontal. This model available with power disconnect switch.

5100 Series Unit Heater - 34.1 BTU - TPI G1G5110CA1L Specifications
BTU34.1
KW10 KW
TEMP RISE45 F
CFM700
Amps.36.1
Phase1 PH
Air throw22'
Voltage 277V
Control Volts 24
Recommended Mounting Height Hortz10'
Recommended Mounting Height Vert14'
Product Dimension24-5/16"H x 21-1/2"W x 6-1/2"D
Weight55 Lbs.
UPC686334645645

5100 Series Unit Heater - 34.1 BTU - TPI G1G5110CA1L Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance

HEATING ELEMENT:

  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow

OVERHEAT PROTECTION:

  • This 10 KW unit equipped with automatic reset type limit.

FAN and MOTOR:

  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit this 10 KW model.
  • Fan over-ride purges unit of residual heat at shutdown

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow up to 15 Deg. from straight horizontal.
  • Optional diffusers available for down flow (vertical discharge) applications

TEMPERATURE CONTROLS:

  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50 deg -90 deg F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls

INSTALLATION:

  • This unit heaters can be mounted for horizontal or vertical discharge
  • 5100 series suggested for applications up to 6000 feet; for applications up to or above 6000 feet see UH series.

FIELD INSTALLED OPTIONS:

  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
  • UL listed
Accessories
Anemostat Diffuser
TPI
Price $271.15
Radial Diffuser
TPI
Price $300.30
Vertical Mount Bracket
TPI
Price $173.25
Thermostat
TPI
Price $128.70
Wall Thermostat
TPI
Price $136.95
Wall Thermostat
TPI
Price $282.15
Thermostat
TPI
Price $87.45
Wall Thermostat
TPI
Price $141.35
Related ITems

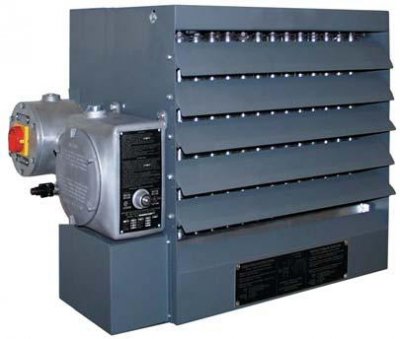

Hazardous Location Fan Forced Unit Heater
