HW
Washdown Unit Heater
TPI

Washdown Unit Heater

H1H5510T
Price $3,650.35
Please select from the Options below
Disconnect Switch
SKU: H1H5510T
BTU /hr.: 34130 BTU
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Washdown Unit Heater H1H5510T Resources:

TPI Washdown Unit Heater H1H5510T Specification

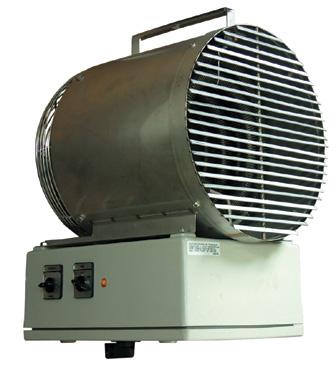

Electric Forced Air Heaters - TPI 10KW 240V Fan Forced Washdown Unit Heater - 34130 BTU - H1H5510T

When the weather turns frosty, keep your indoor or outdoor workspace warm and cozy with the 10KW 240V Fan Forced Washdown Unit Heater with 34130 Btu. Model H1H5510T manufactured by leading manufacturer TPI. The heater is a electric unit heaters constructed for use in areas that require washing or hosing of equipment due to dirty or dusty environments in non-hazardous locations. The totally enclosed water-tight construction made with corrosion-resistant material make the units ideal for industrial heating applications.

TPI Fan Forced Washdown Unit Heater H1H5510T Specifications
BTU34130
KW10
Volts240
Phase1
AMPS41.2
Fuel TypeElectric
Control volts24
Temp. Rise45 deg F
Air Throw28'
CFM700
Weight64 Lbs.
UPC686334713276

TPI Fan Forced Washdown Unit Heater H1H5510T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available, consult factory.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available, consult factory
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
  • ETL Approved
Accessories
Hanging Mount Bracket
TPI
Price $198.55
Line Voltage Thermostat
TPI
Price $104.15
