HW
Washdown Unit Heater
TPI

Washdown Unit Heater

P3P5505T
Price $2,664.20
Please select from the Options below
Disconnect Switch
SKU: P3P5505T
BTU /hr.: 17100 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Fan Forced Washdown Unit Heater P3P5505T Resources:

TPI Fan Forced Washdown Unit Heater P3P5505T Specifications

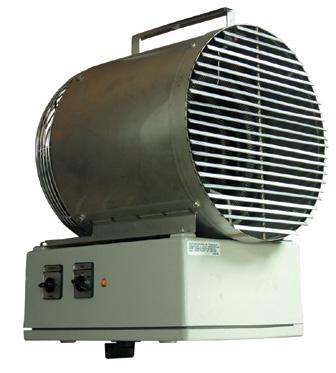

We present you 5 KW Fan Forced Washdown Unit Heater by TPI. Model P3P5505T is equipped with 17100 BTU, heavy duty 304 16 ga. stainless steel shroud, inlet grill, 24-volt control, 3-position switch, capillary style thermostat, automatic reset thermal cutout and totally enclosed motor. Control panel is constructed on bottom of unit for ease of installation and service. This ABS Type approved is amongst the best unit heaters available in the market.

TPI Fan Forced Washdown Unit Heater - P3P5505T Specifications
Wattage5 KW
BTU's17100 BTU
VOLTS480V
Phase3 Ph
AMPS6.1
Control Voltage24
Temp Rise deg F40 F
Air Throw20'
CFM400
Dimension12"W x 18"D x 19.75 H
Weight58 lbs.
UPC686334713160
ListedETL Listed

Fan Forced Washdown Unit Heater - P3P5505T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available,
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
