HW
Washdown Unit Heater
TPI

Washdown Unit Heater

P3P5507T
Price $7,646.00 $4,893.44
Please select from the Options below
Disconnect Switch
SKU: P3P5507T
BTU /hr.: 25600 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Fan Forced Washdown Unit Heater P3P5507T Resources:

TPI Fan Forced Washdown Unit Heater P3P5507T Specifications

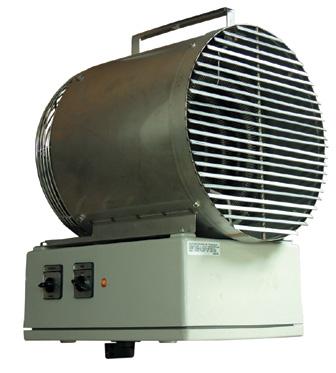

7.5 KW Fan Forced Washdown Unit Heater is made with all in-built controls and safety temperature controls wired in a non-metallic Nema 4x control panel with single-point power connections. Along with 25600 BTU, TPI P3P5507T consists of disconnect switch with enclosure door interlock, front grill rotates to direct airflow, 3 position switch (off-heat-fan) and heavy duty 304 16 ga. stainless steel shroud and inlet grill.

TPI Fan Forced Washdown Unit Heater - P3P5507T Specifications
Wattage7.5 KW
BTU's25600 BTU
VOLTS480V
Phase3 Ph
AMPS9.1
Control Voltage24
Temp Rise deg F60 F
Air Throw20'
CFM400
Dimension12"W x 18"D x 19.75 H
Weight58 lbs.
UPC686334713238
ListedETL Listed

Fan Forced Washdown Unit Heater - P3P5507T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available,
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
