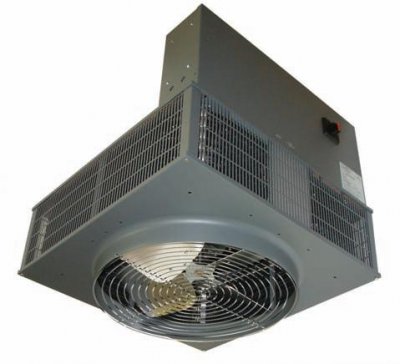

Downflow Unit Heater
TPI

Downflow Unit Heater

F3F2625CA1
Price $2,294.05
SKU: F3F2625CA1
BTU /hr.: 85325 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

TPI 25 KW Downflow Unit Heater F3F2625CA1 Resources:

TPI 25 KW Downflow Unit Heater F3F2625CA1 Specification

Downflow Unit Heaters - 25 KW Downflow Unit Heater - TPI F3F2625CA1 - 85325 BTU

25 KW Downflow Unit Heater with 85325 BTU is one of the most-selling heaters by TPI. Model F3F2625CA1 features totally enclosed, 2 speed, 1 phase permanently lubricated, thermally protected motors with sleeve, in-built 24 volt transformer for low voltage remote thermostat application, in-built disconnect and axial flow fan blade with 1570 RPM max. It may operate as 2 stage heaters if 2 stage remote thermostat is used.

TPI 25 KW Downflow Unit Heater F3F2625CA1 Specifications
UPC686334717519
KW25
BTU85325
VOLTS208
PHASE3
AMPS69.5
Control Voltage24
Temperature Rise24 F
CFM3300
Weight175 Lbs.

TPI 25 KW Downflow Unit Heater F3F2625CA1 Features:

CONSTRUCTION:

  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard

HEATING ELEMENT:

  • Corrosion resistant element with steel sheath and steel spiral fins

OVERHEAT PROTECTION:

  • Equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, 2 speed, 1 phase permanently lubricated, thermally protected motors with sleeve.
  • Axial flow fan blade - 1570 RPM max.
  • Equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat

TEMPERATURE CONTROLS:

  • In-Built 24 volt transformer for low voltage remote thermostat application
  • May operate as 2 stage heaters if 2 stage remote thermostat is used

DISCONNECT SWITCH:

  • Equipped with in-built disconnect

INSTALLATION:

  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain
